SUPER ECONOMICAL GOODS LIFT INSTALLATION

Are you an individual customer or a shop owner looking for a simple yet effective solution to transport goods between floors? The SUPER ECONOMICAL GOODS LIFT from VNDB is a practical and cost-saving option designed to meet your needs.

WHAT TYPES OF PROJECTS ARE SUITABLE FOR THE SUPER ECONOMICAL GOODS LIFT?

The SUPER ECONOMICAL GOODS LIFT is suitable for projects with limited space and light lifting requirements where a large-size lift cannot be installed.

It is also suitable for houses or buildings where the only available installation area is the skylight or vertical opening.

This lift is ideal for goods that do not require high hygiene standards or are already packed and sealed.

The package applies to customers who choose the SUPER ECONOMICAL GOODS LIFT manufactured by VNDB with fixed standard dimensions.

*NOTES: If the floor height is higher than 4 meters, the price will be calculated according to the next lift package.

If the lift dimensions need to be changed, please contact VNDB directly to receive an accurate quotation.The package applies to projects located in Ho Chi Minh City. For projects outside Ho Chi Minh City, customers will need to cover additional transportation and accommodation costs, calculated at 200,000 VND/km from the company’s head office.
The listed price is a complete installation package in Ho Chi Minh City with no additional costs.

A. ORDERING PROCESS

STEP 1: Customers select the desired number of stops according to their actual usage needs.

STEP 2:Customers can send their order information through the following channels:

ZALO: Send information to 0987 012 020 with the following details: Name – Phone Number – Number of Stops.
EMAIL: Send information to info@vndb.vn with the following details: Name – Phone Number – Number of Stops.
FACEBOOK: Send information through VNDB’s official Facebook page with the following details: Name – Phone Number – Number of Stops.
HOTLINE: Contact 0987 012 020 directly to speak with a consultant for immediate support.

STEP 3: VNDB will confirm the customer’s information and proceed according to the goods lift installation process described at the end of this article.

B. GOODS LIFT INFORMATION

GENERAL INFORMATION

Product: SUPER ECONOMICAL GOODS LIFT with a lifting capacity of 150 kg.
Origin: The lift is manufactured and assembled by VNDB Construction Investment Joint Stock Company with a high localization rate.

APPLICATIONS OF THE GOODS LIFT

The GOODS LIFT is an effective and convenient lifting solution for individuals, businesses, households, small shops, warehouses, and multi-storey workshops that need to transport goods between floors. It is specially designed for carrying goods, production materials, business products, and other items safely and efficiently.

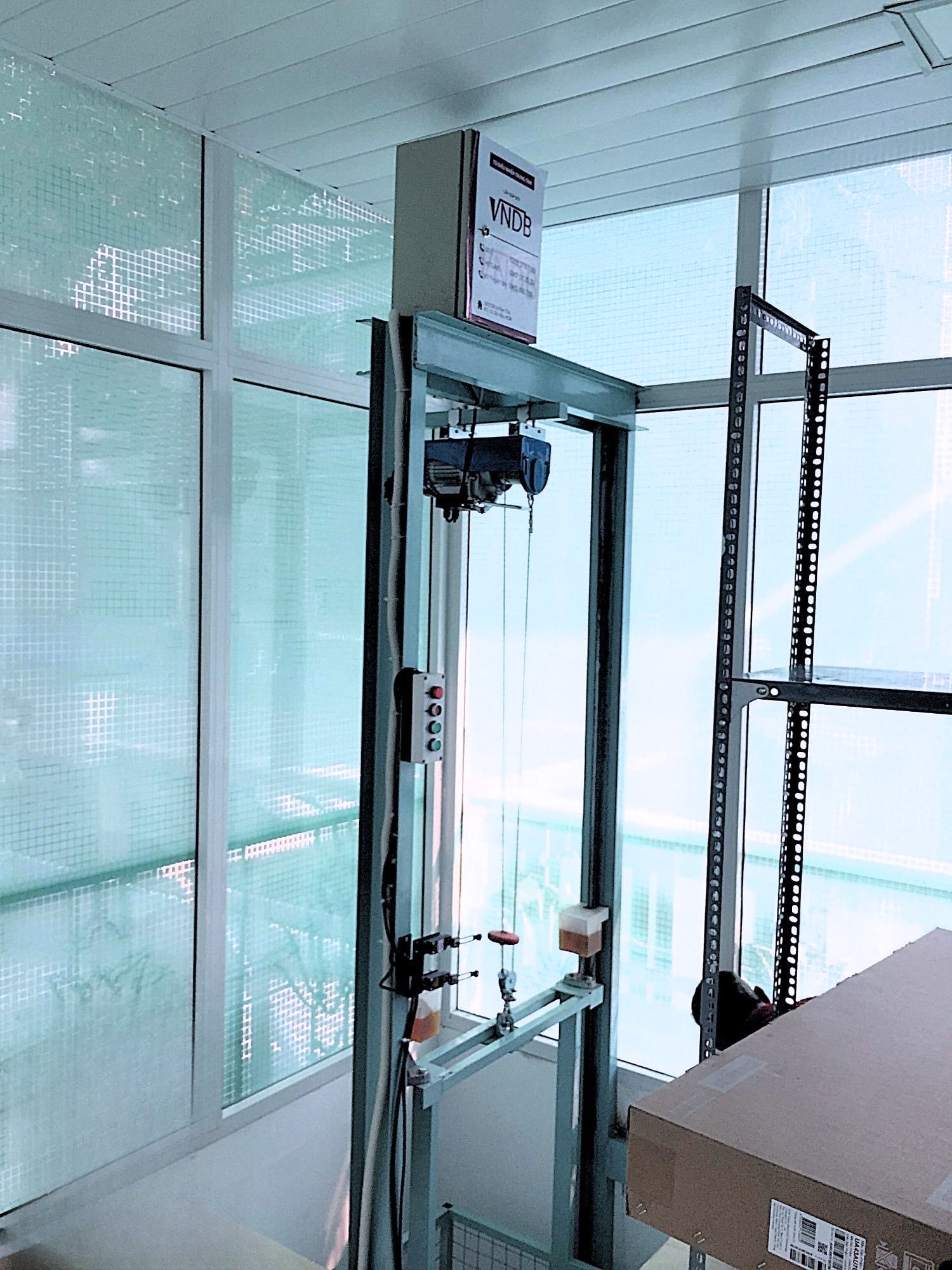

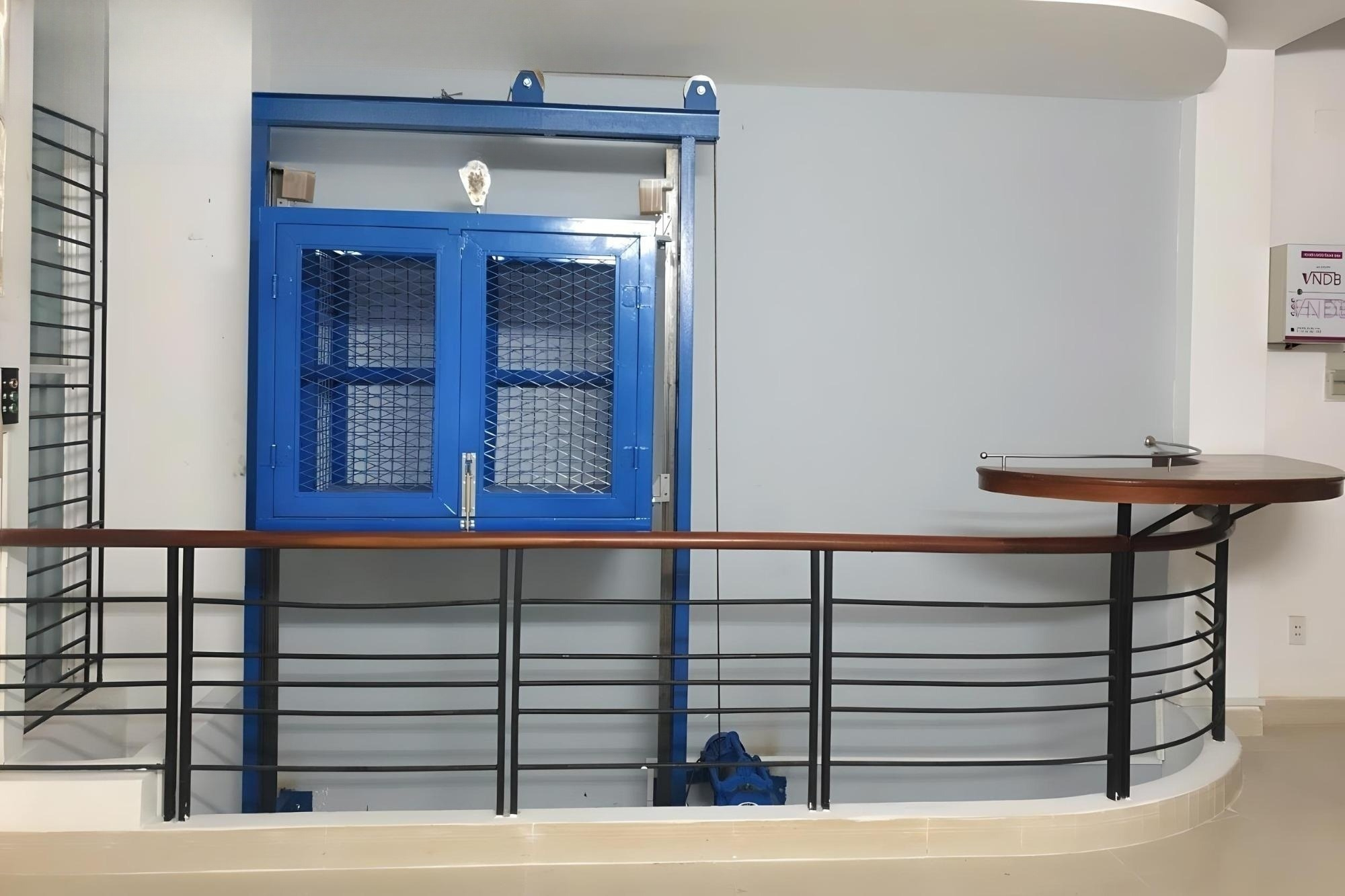

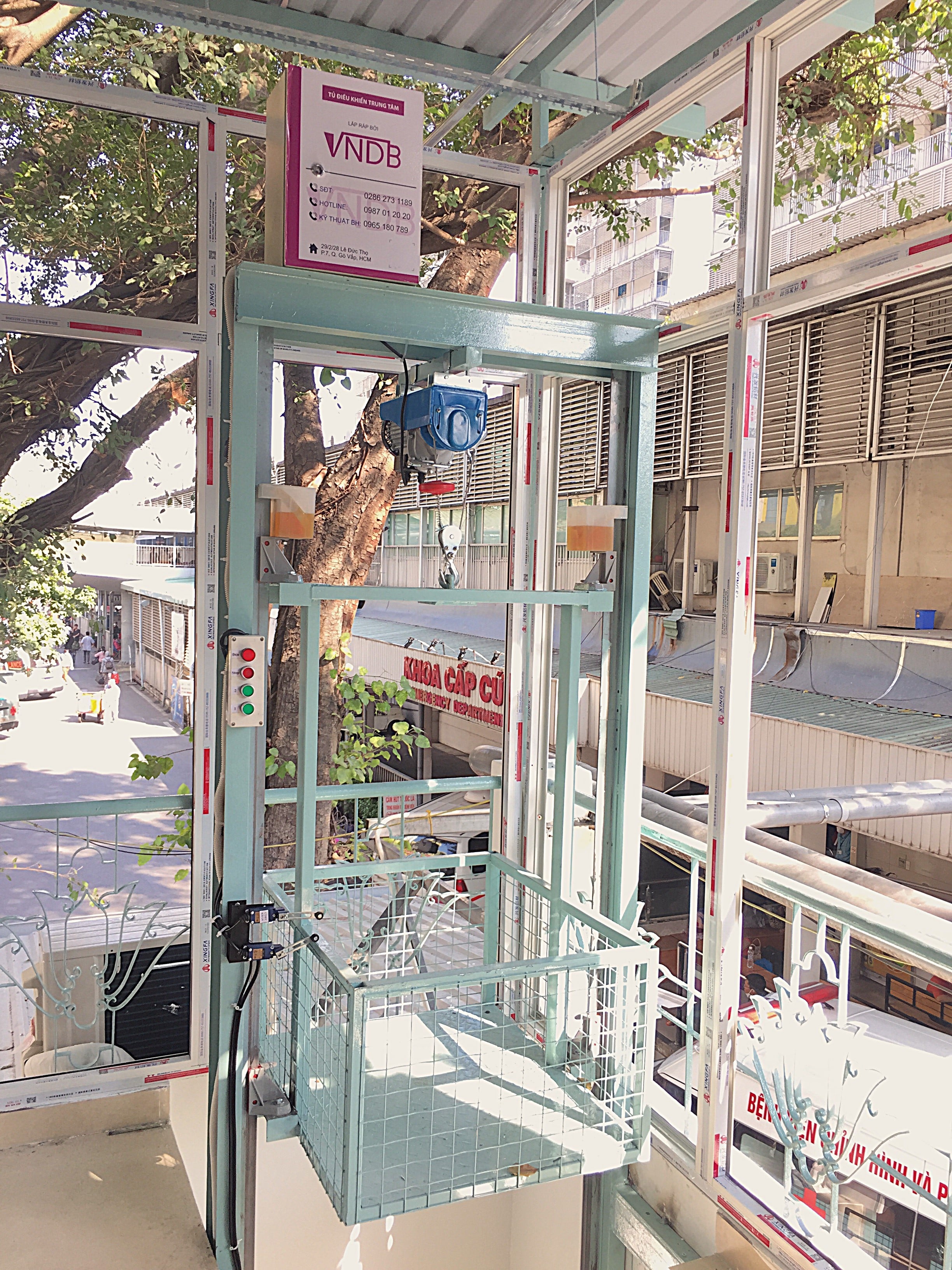

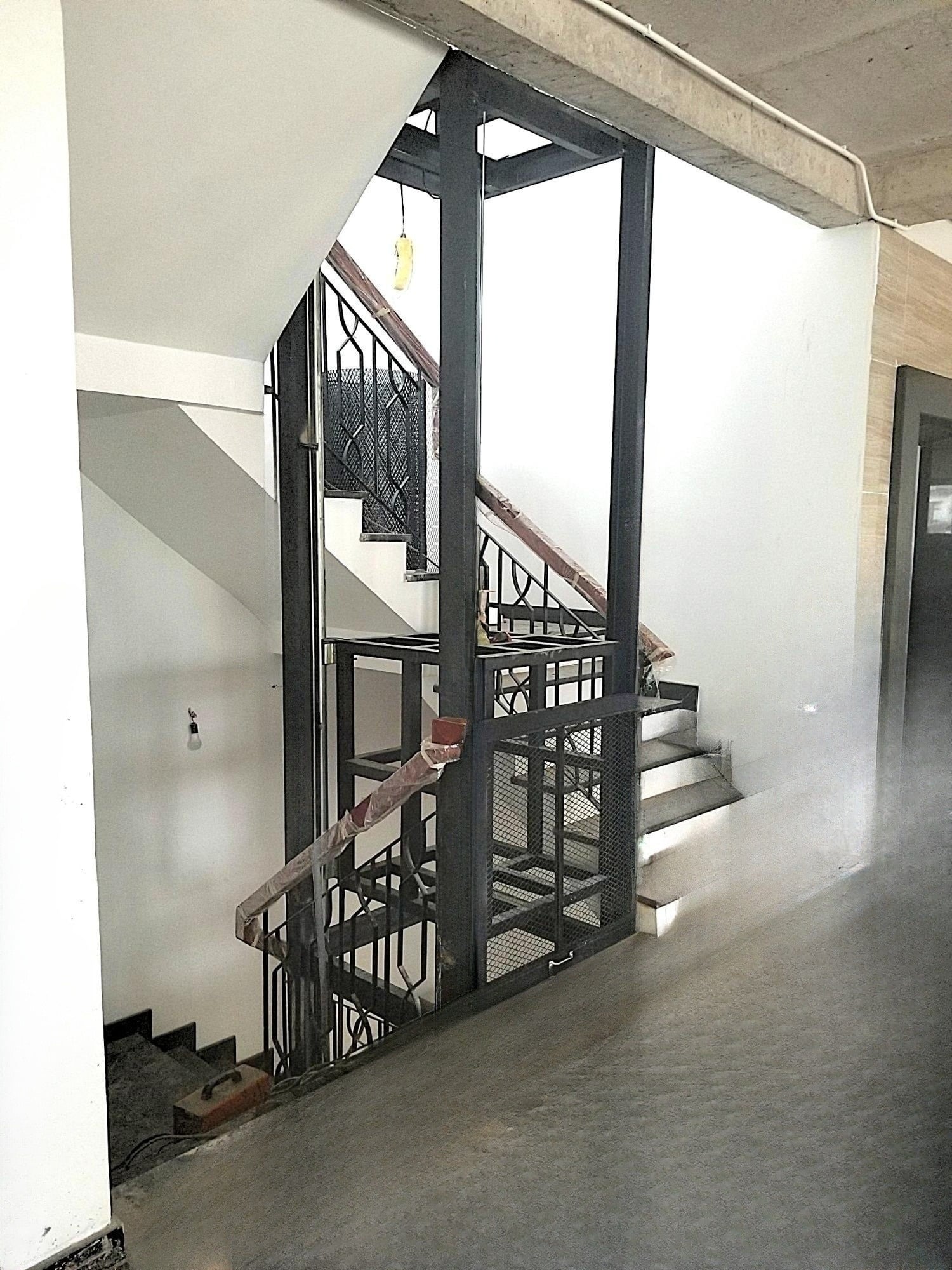

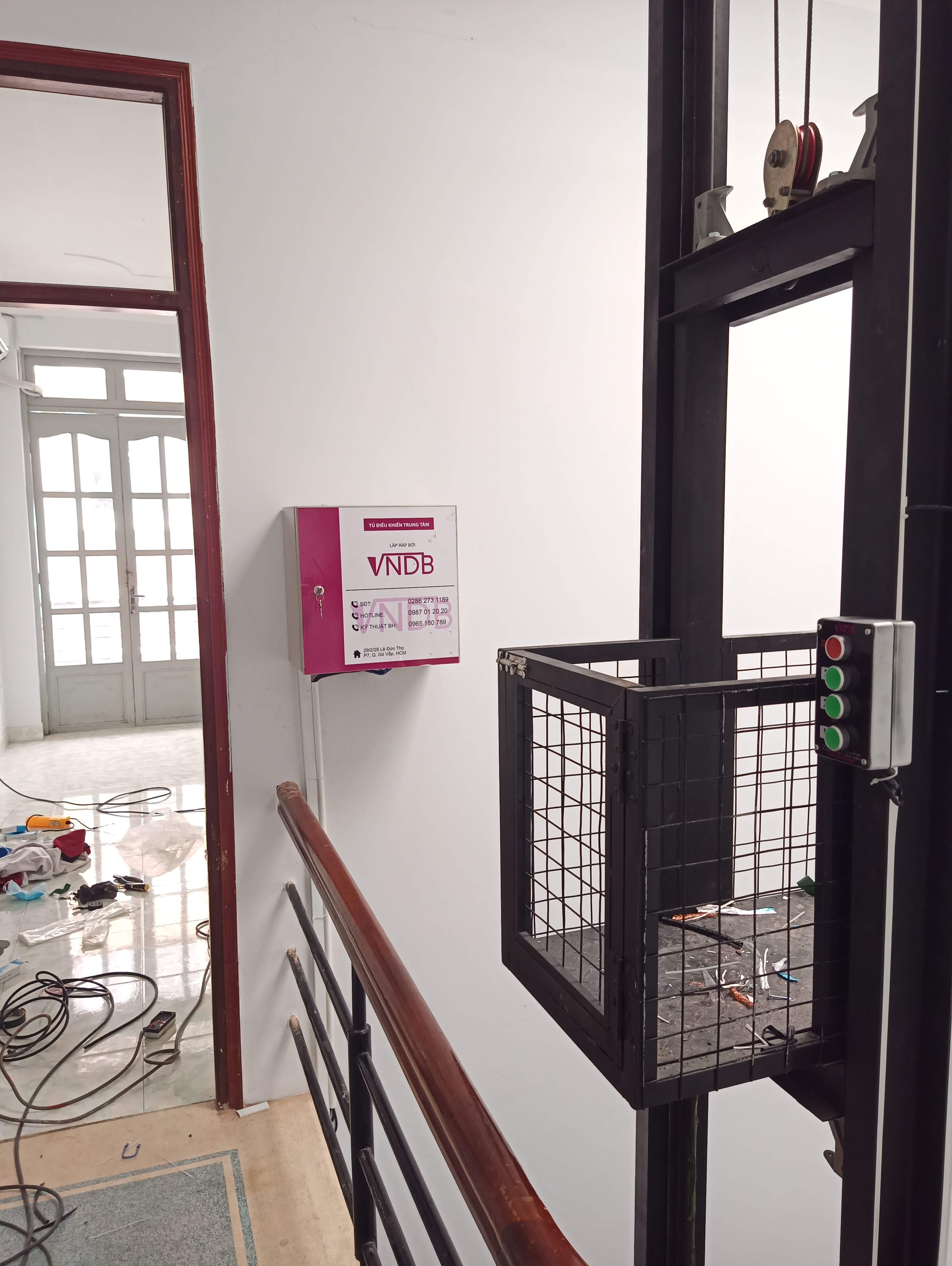

The installation location can be flexible depending on the actual site conditions. The lift can be installed indoors or outdoors. Customers can also take advantage of skylights or vertical openings to install the goods lift, helping save maximum working space. However, the installation area must be large enough to meet the minimum lift shaft size of 1.5 m x 1.3 m.

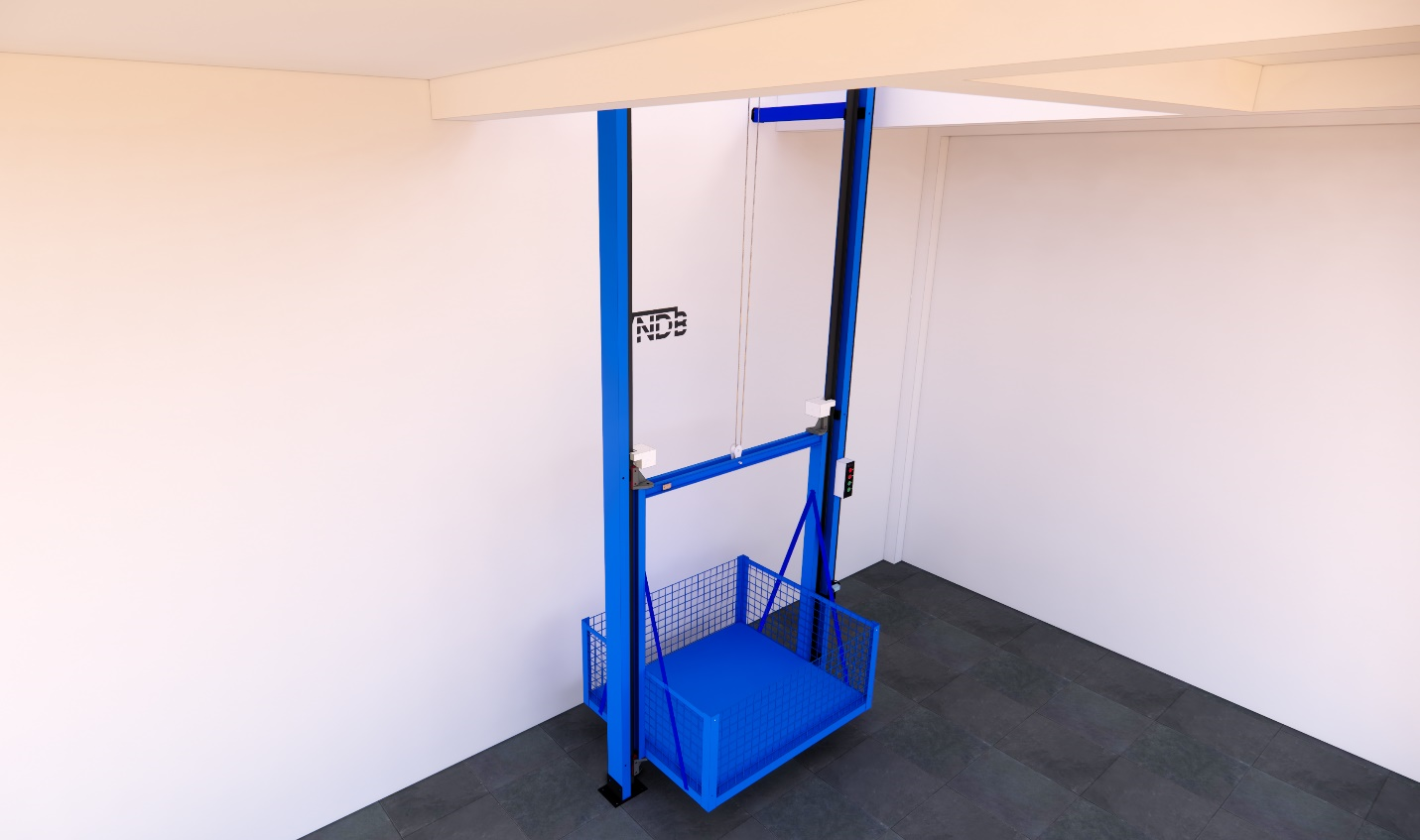

DESCRIPTION OF THE GOODS LIFT

The GOODS LIFT is designed by a team of skilled and dedicated engineers. The product has a practical structure, clean appearance, and is easy to install and assemble.
The motor system is newly imported and comes with CO – Certificate of Origin and CQ – Certificate of Quality, ensuring good quality and high durability.
The lift frame is fabricated by VNDB using high-strength steel. The guide rail system is made from galvanized steel box sections, helping reduce oxidation during operation.
The control panel allows the lift to stop at the desired floor.
The lift is carefully studied and designed by VNDB engineers to meet various customer requirements related to site conditions, installation position, lifting capacity, and practical usage needs.

BASIC FUNCTIONS

The lift is equipped with an emergency over-travel protection system.
All structural connections are calculated with overload factors to ensure safety for users during operation.

ADVANCED FUNCTIONS – OPTIONAL AND CHARGED SEPARATELY

OVERLOAD PROTECTION

When the lifting load exceeds the permitted rated capacity, the system will display an overload warning and will not execute the movement command.

DECELERATION BEFORE STOPPING

When the lift approaches the stopping point, the system reduces speed to minimize vibration and impact. This helps ensure that goods remain intact during transportation, especially when carrying food or fragile products.

BASIC TECHNICAL SPECIFICATIONS

PRODUCT NAME: SUPER ECONOMICAL GOODS LIFT

No.	Item	Description
01	Maximum goods lifting capacity	Rated capacity: 150 kg. Manufacturer’s declared capacity: 400 kg, excluding cabin weight and apparent power, calculated at 60%.
02	Goods transportation speed	Approximately 8–12 meters per minute

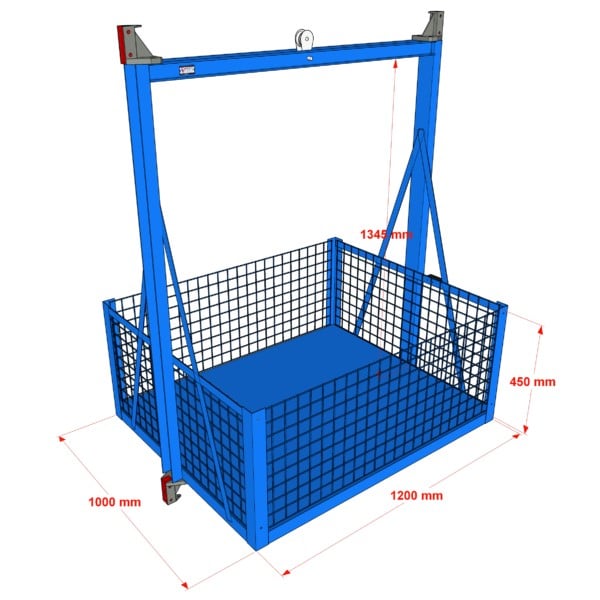

03	Internal cabin size: Length x Width x Height	1200 mm x 1000 mm x 1300 mm

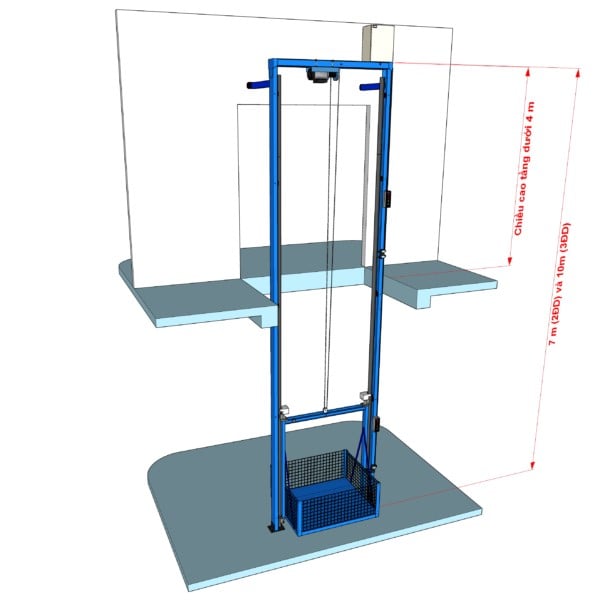

04	Maximum lifting height, calculated from the lift base	4500 mm for a 2-stop lift; 7200 mm for a 3-stop lift
05	Main motor	China
06	Power supply to the electrical cabinet	220VAC / 50Hz, 1 phase
07	Specialized guide rail	Galvanized steel
08	Specialized lifting cable diameter	Ø4 mm
09	Cabin frame and wall material	40 mm flat steel + square mesh 50 mm x 50 mm x 3 mm
10	Cabin floor material	2 mm smooth steel plate
11	Structural frame	High-strength shaped steel
12	Floor call button	Plastic push button with indicator light on the control panel
13	Control power supply	24VDC
14	Motor operating noise measured from 5 m	≤ 80 dB, commonly from 60 dB to 70 dB
15	Maximum continuous operating time	≤ 3.5 hours. The lift should not operate continuously beyond this time without stopping, as it may damage the motor.
16	Elevator PIT	Not required
17	Origin and product condition	VNDB Construction Investment Joint Stock Company. Condition: 100% new. Year of manufacture: 2023
18	Installation time	12 working days for projects in Ho Chi Minh City; 15–20 working days for projects in other provinces

C. GOODS LIFT WARRANTY POLICY

The warranty policy reflects the quality of the product and the service capability of the supplier. VNDB provides a standard warranty policy to ensure safe and reliable operation for customers.

WARRANTY PERIOD

All lift products supplied by VNDB are installed and warranted for 1 year, equivalent to 12 months, from the date of handover and commissioning. The warranty period may be extended depending on customer requirements or the company’s policy. Under this warranty policy, VNDB’s technicians will inspect and maintain the lift to ensure that it continues to operate properly.
During the warranty period, if the lift has any technical problem caused by manufacturer defects in equipment or components, VNDB will repair or replace the faulty parts within 48 hours in inner-city areas. If the problem is serious and requires more time for repair, VNDB will temporarily replace the equipment or components with available spare parts to ensure that the customer’s operation is not interrupted.

CONDITIONS FOR FREE WARRANTY

The product is still within the warranty period according to the handover record or warranty information form.
The lift is used correctly according to VNDB’s operating instructions.
The issue is caused by a technical fault from the supplier.

CASES NOT COVERED BY FREE WARRANTY

The product warranty period has expired according to the handover record.
The customer does not comply with the terms of the contract.
The lift is not used for the correct purpose or does not match the functions recommended by the supplier.
The product is damaged due to force majeure events such as natural disasters, fire, abnormal power supply, or similar causes.
The product is modified or repaired by a third party without written approval from VNDB.
Consumable parts such as light bulbs, batteries, and similar components are damaged during use.
Technical component faults are not caused by the manufacturer.

GOODS LIFT WARRANTY PROCESS

STEP 1: VNDB prepares a plan and schedules with the customer within 4 working hours after receiving the information.

STEP 2: VNDB staff contact the customer, collect feedback about product quality, and carry out warranty service within 48 hours.

STEP 3: VNDB checks the quality of each lift component.

STEP 4: VNDB cleans and checks the operating functions of the control cabinet and motor components.

STEP 5: VNDB cleans and checks the operating functions of the control panel, limit switches, and related components.

STEP 6: VNDB performs a test run after warranty service, records the results, and discusses them with the customer.

STEP 7: After the warranty period expires, customers can switch to VNDB’s maintenance service.

QUALITY OF REPLACEMENT LIFT EQUIPMENT DURING WARRANTY AND MAINTENANCE

All equipment and components replaced during the warranty period are genuine and quality-assured by VNDB.

All parts are carefully inspected and selected according to the company’s technical standards.

D. STANDARD GOODS LIFT INSTALLATION PROCESS

VNDB has built a team of qualified, capable, and experienced engineers and technicians. The company regularly organizes specialized training programs and invites experts to provide technical instruction. This helps improve the professional skills of VNDB’s technical staff and allows the company to meet the increasing requirements of modern and large-scale projects.

All projects carried out by VNDB are completed with reliable operational quality, proper progress, and dedicated customer service.

The lift installation process is designed to control quality in detail throughout every stage of the work. VNDB supervises the entire lift system to ensure absolute quality before handover to the customer.

E. PROCESS FOR RECEIVING INFORMATION AND INSTALLING THE SUPER ECONOMICAL GOODS LIFT

STEP 1: VNDB receives customer requests directly through the hotline 0987 012 020 or indirectly through VNDB’s communication channels such as Facebook, Zalo, and Email.

STEP 2: VNDB provides free consultation and sends the customer a detailed quotation together with a preliminary drawing of the goods lift.

STEP 3: The customer confirms the quotation and the expected completion time.

STEP 4: Both parties proceed with contract signing and the customer makes the first payment.

STEP 5: VNDB transports materials and equipment to the project site. Both parties sign a material delivery confirmation record, and the customer makes the second payment.

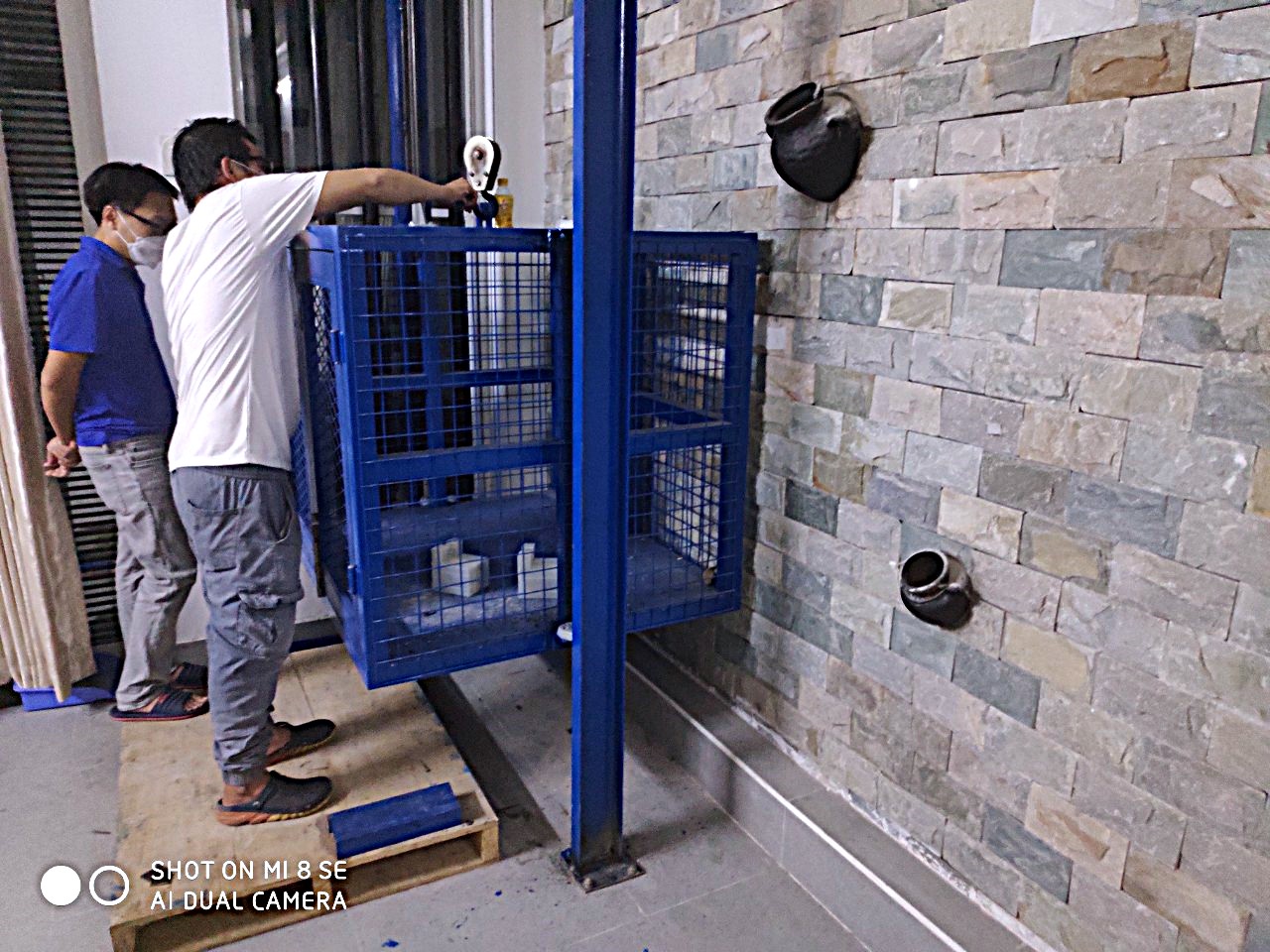

STEP 6: VNDB carries out installation and signs the handover record to put the lift into use.

STEP 7: VNDB conducts lift quality inspection to ensure that the lift is ready for safe and efficient operation, if required.

STEP 8: Both parties complete all required documents for the third payment and final settlement.

STEP 9: VNDB provides warranty service according to the handover record or warranty information form.

F. GOODS LIFT QUALITY STANDARDS

Depending on the type of lift and its intended use, each lift system must meet specific technical and safety standards. A goods lift is designed to transport goods in warehouses, workshops, and production facilities, so safety must always be ensured.

Safety is a key factor that determines VNDB’s product quality and reputation.

After installation and before being put into operation, the lift may be inspected by the competent authority based on applicable quality standards. Only after passing the inspection can the lift be approved for use.

All inspection steps must be carried out according to strict procedures and in compliance with legal regulations.

Applicable standards include:

TCVN 4244:1986 – Safety regulations for lifting equipment and elevators.

TCVN 7628-3:2007 – Elevator installation – Part 3: Service lifts, Type V.
