HOME GOODS LIFT INSTALLATION

If you are a family-run business, construction contractor, café owner, homeowner, or a customer who needs to transport common goods such as cakes, candies, packaged food, pharmaceutical products, and other items between floors, this article is for you.

All VNDB goods lifts supplied and installed by VNDB come with a 1-year warranty from the date of inspection or commissioning. The warranty period may be extended depending on customer requirements or the company’s policy. During the warranty period, the lift will be inspected and maintained to ensure stable and reliable operation.

WHAT TYPES OF PROJECTS ARE SUITABLE FOR A HOME GOODS LIFT?

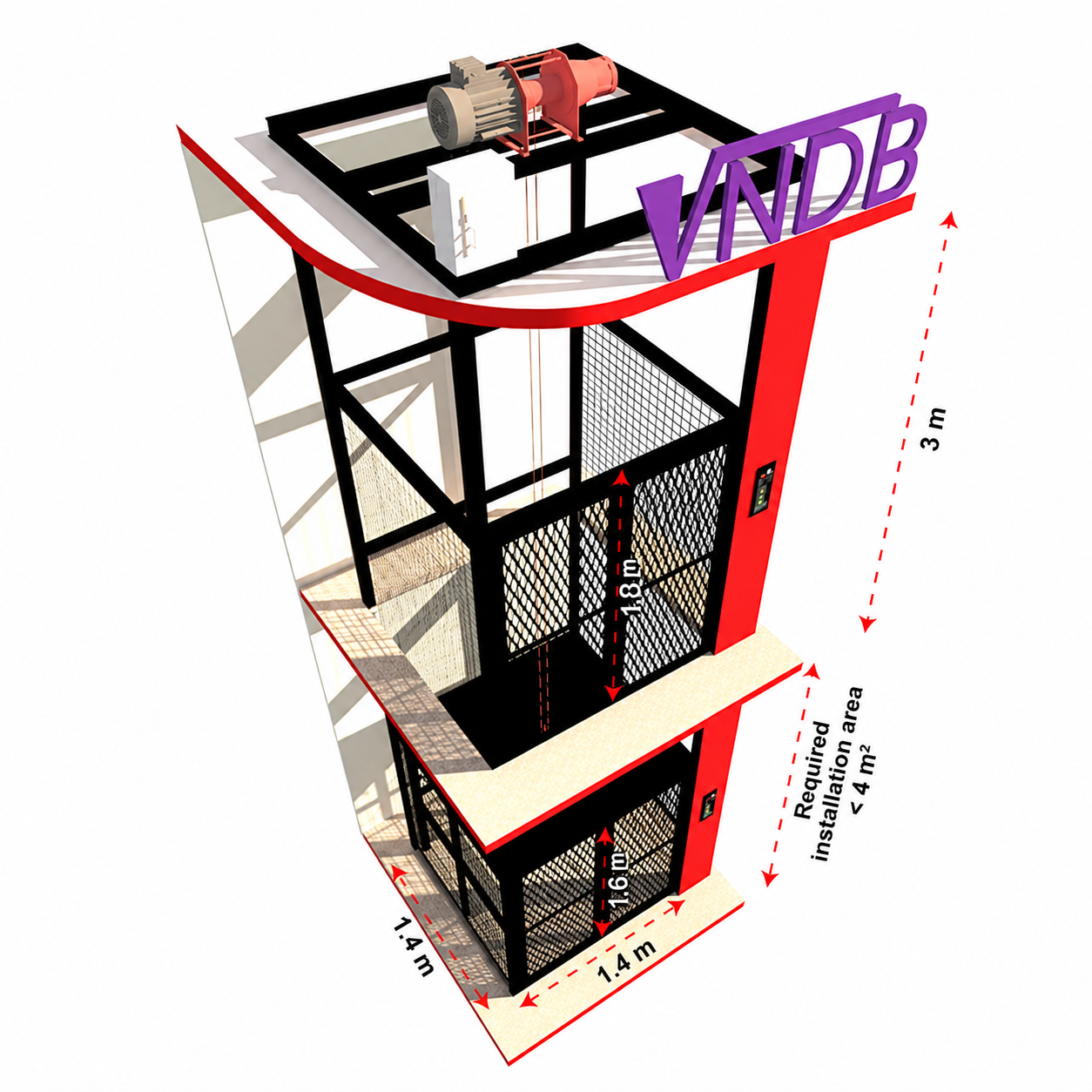

A home goods lift is suitable for customers who need to lift relatively heavy goods, with load capacities ranging from 150 kg to 1,000 kg for household or small business use.

It is also suitable for houses or buildings that already have an open vertical shaft or skylight area that can be used for lift installation.

GOODS LIFT COMBO PACKAGE AT A VERY COMPETITIVE PRICE

• The listed price is a complete installation package with no additional costs.
• This package applies to customers who choose VNDB’s standard goods lift models with fixed dimensions provided by VNDB.

*NOTES: If the floor height is higher than 4 meters, the price will be calculated according to the next lift package.

• The package applies to projects located in the districts of Ho Chi Minh City. For projects outside the districts of Ho Chi Minh City, customers will need to pay additional transportation and accommodation costs, calculated at 200,000 VND/km from the company’s head office.

ORDERING PROCESS

STEP 1: Customers choose the lift model that best suits their usage needs and installation conditions.

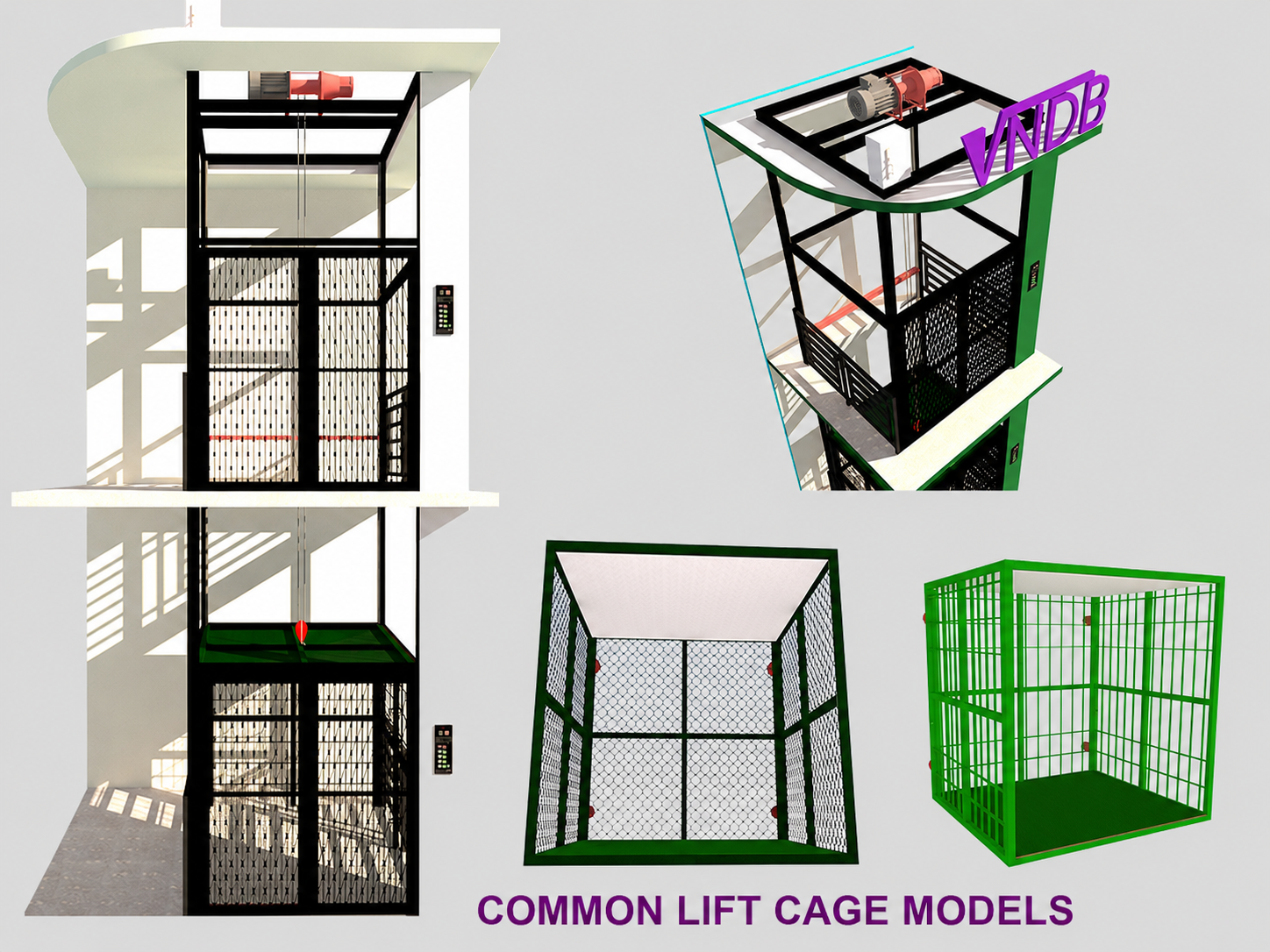

STEP 2: Customers choose the cabin or lift cage design according to the available VNDB options.

STEP 3: Customers choose the railing or safety barrier model suitable for the project.

STEP 4: Customers can send their order information through the following channels:

• ZALO: Send information to 0987 01 20 20.
• EMAIL: Send information to info@vndb.vn.
• FACEBOOK: Send information through VNDB’s official Facebook page.
• HOTLINE: Contact 0987 01 20 20 directly to speak with a consultant for immediate support.

STEP 5: VNDB will confirm the customer’s information and proceed according to the goods lift installation process described at the end of this article.

GOODS LIFT DESCRIPTION

GENERAL INFORMATION

• Product: Goods lift with a load capacity from 300 kg to 1,000 kg
• Origin: The lift is manufactured and assembled by VNDB Construction Investment Joint Stock Company with a high localization rate.

APPLICATIONS OF THE GOODS LIFT

• A goods lift with a load capacity from 300 kg to 1,000 kg is an effective and convenient lifting solution for individuals, businesses, households, small shops, warehouses, and multi-storey workshops that need to transport goods between floors. This product is specially designed for carrying goods, production materials, business products, and other items safely and efficiently.
• The installation location can be flexible depending on the actual site conditions. The lift can be installed indoors or outdoors. Customers can also take advantage of skylights or open vertical spaces to install the goods lift, helping save maximum working space.

DESCRIPTION OF THE GOODS LIFT

• The goods lift is designed by a team of skilled and dedicated engineers. The product has a clean appearance, practical structure, and is easy to install and assemble. It is inspected before being put into operation to ensure safety.
• The motor system is newly imported and comes with CO – Certificate of Origin and CQ – Certificate of Quality, ensuring good quality and high durability.
• The lift frame is fabricated by VNDB using high-strength steel. The guide rail system is made from galvanized steel box sections, helping reduce oxidation during operation.
• The control panel is equipped with an LED display, allowing users to identify the current floor position of the cabin during operation.
• The lift is carefully studied and designed by VNDB engineers to meet various customer requirements related to site conditions, installation position, load capacity, and actual usage needs.

BASIC FUNCTIONS

ENERGY-SAVING FUNCTION

• The upgraded control system uses a PLC chip to coordinate motor operation, helping the lift move smoothly, stably, and reliably. This system can reduce electricity consumption by up to 30% compared with older control cabinets.
• Devices such as LED lights and control buttons can be temporarily switched off when not in use to save energy.

LOCKING FUNCTION DURING POWER FAILURE

• In the event of a sudden power outage, the central control cabinet automatically returns the command and activates the locking function to prevent the cabin from falling.

SAFETY FUNCTIONS

• Door lock safety: To ensure safe operation, all lift doors must be closed before the lift can run. If any landing door is not properly closed, the control cabinet will prevent the lift from operating and display an error on the LED panel.
• Travel limit safety: If the lift encounters a problem related to exceeding the permitted travel limit, the control system will immediately stop the lift to ensure safety.

ADVANCED FUNCTIONS – AVAILABLE UPON REQUEST

• OVERLOAD PROTECTION: When the lifting load exceeds the permitted rated capacity, the system will display an overload warning and will not execute the movement command.
• DECELERATION BEFORE STOPPING: When the lift approaches the stopping point, the system reduces speed to minimize vibration and impact. This helps ensure that goods remain intact during transportation, especially when carrying food or fragile products.

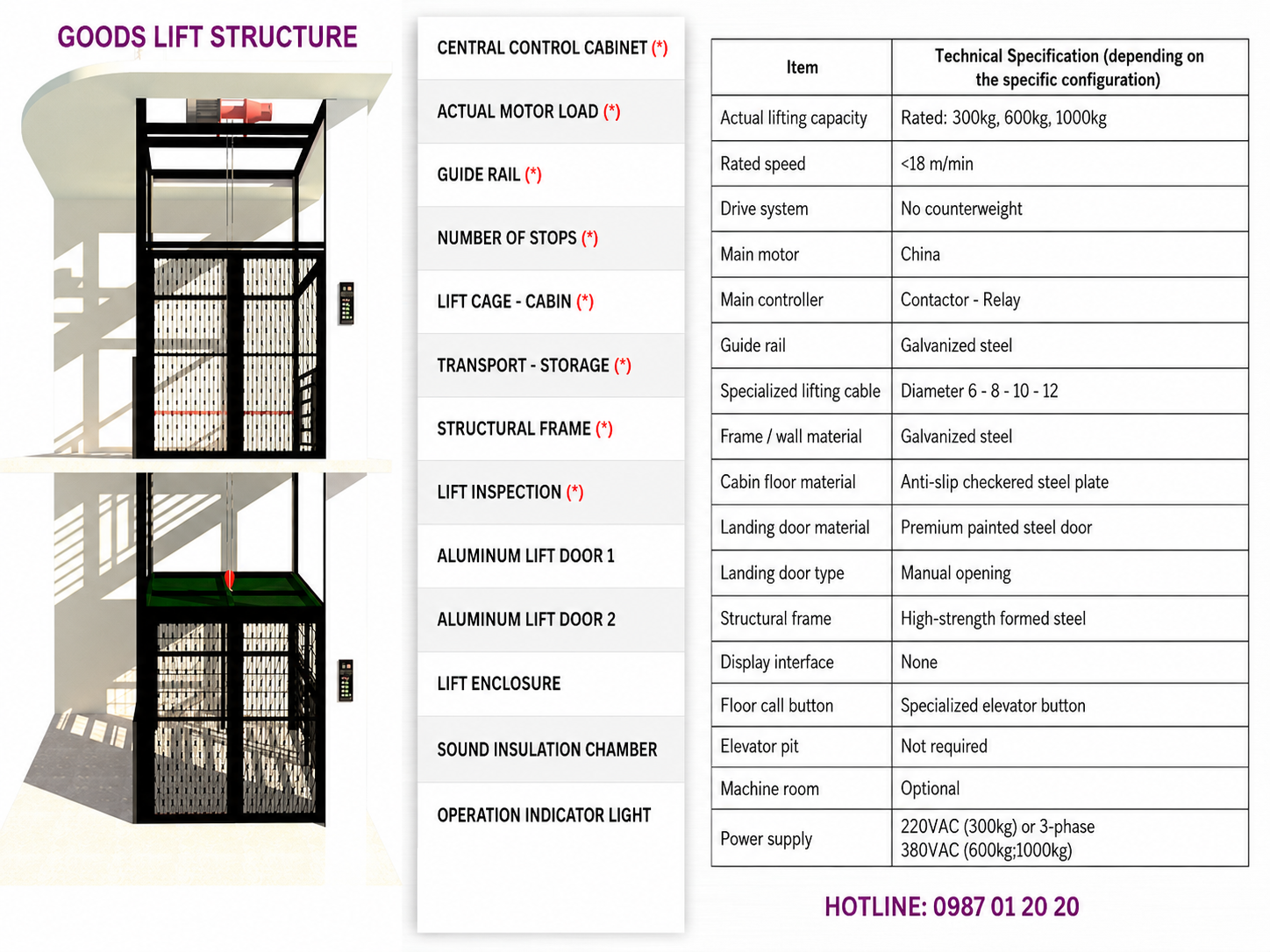

BASIC TECHNICAL SPECIFICATIONS

Item	Technical Specification
Actual lifting capacity	Rated capacity: 300 kg, 600 kg, 1,000 kg
Rated speed	Less than 18 meters per minute
Drive system	Non-counterweight system
Main motor	China
Main controller	Contactor – Relay
Guide rail	Specialized elevator rail
Specialized lifting cable	Diameter 6 mm, 8 mm, 10 mm, or 12 mm
Frame and wall material	Galvanized steel
Cabin floor material	Anti-slip checkered steel plate
Landing door material	Premium painted steel door
Landing door type	Manual opening
Structural frame	High-strength shaped steel
Display interface	Not included
Floor call button	Specialized elevator push button
Elevator PIT	Not required
Machine room	Available with or without machine room
Power supply	220VAC for 300 kg lift, or 3-phase 380VAC for 600 kg and 1,000 kg lifts

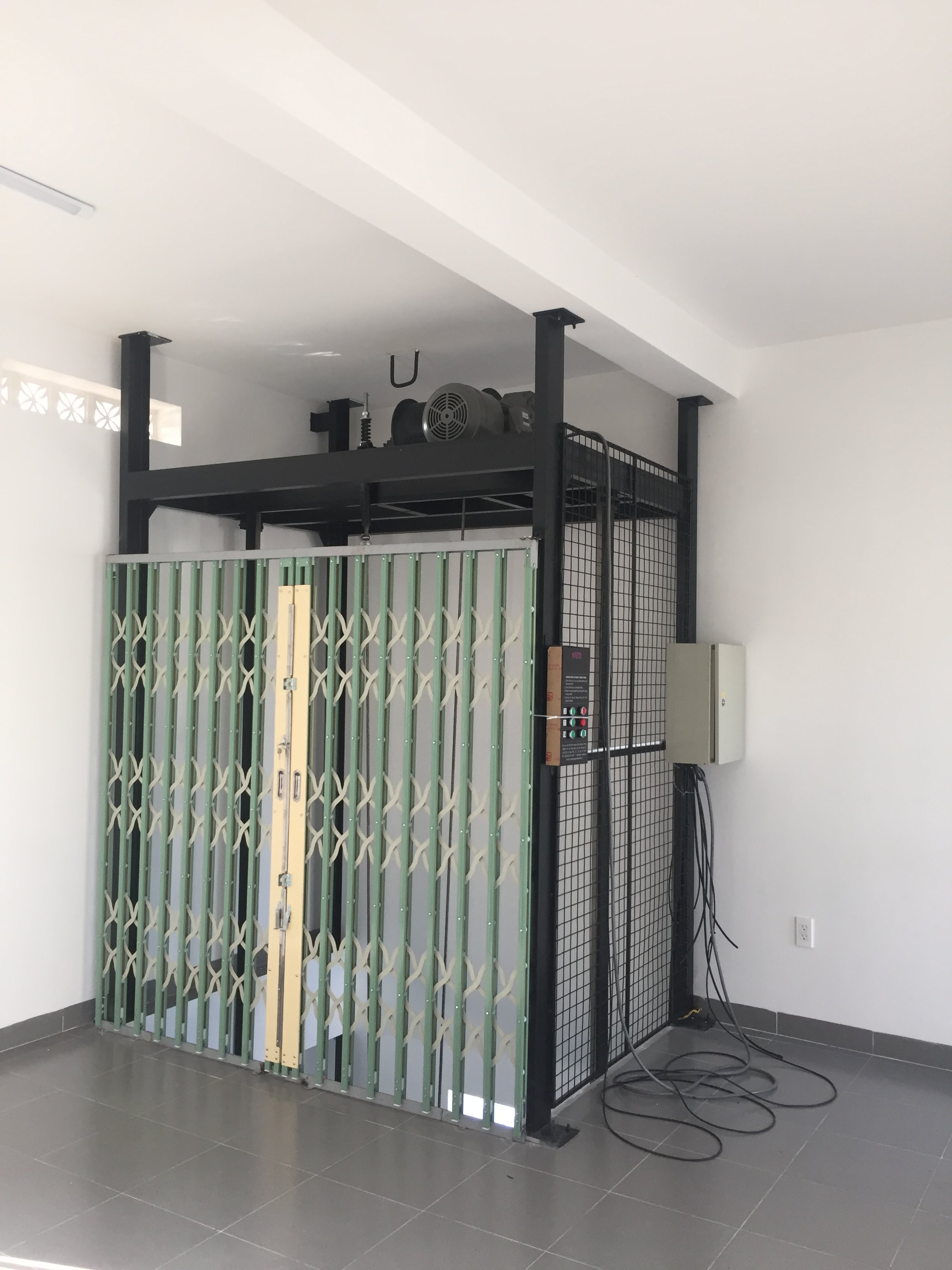

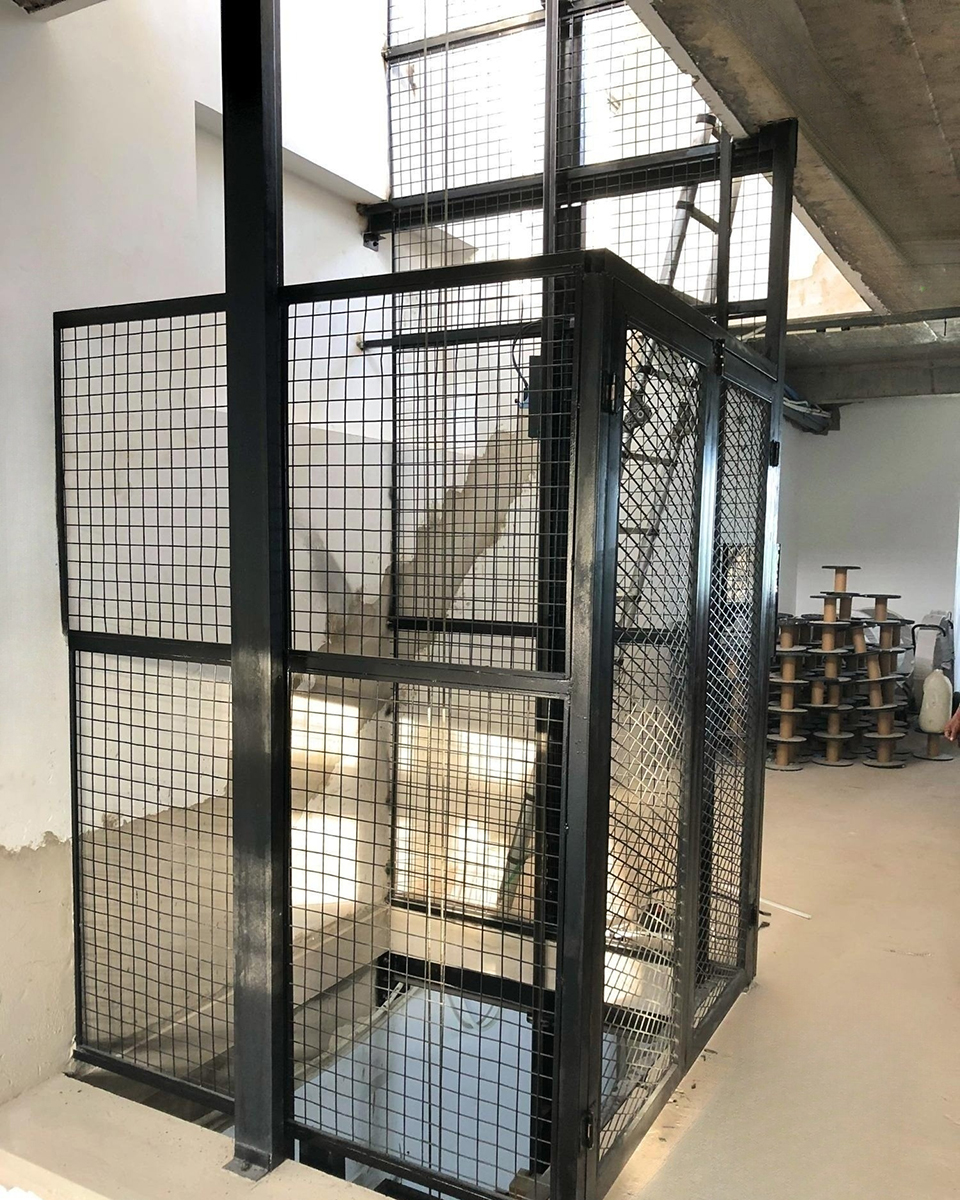

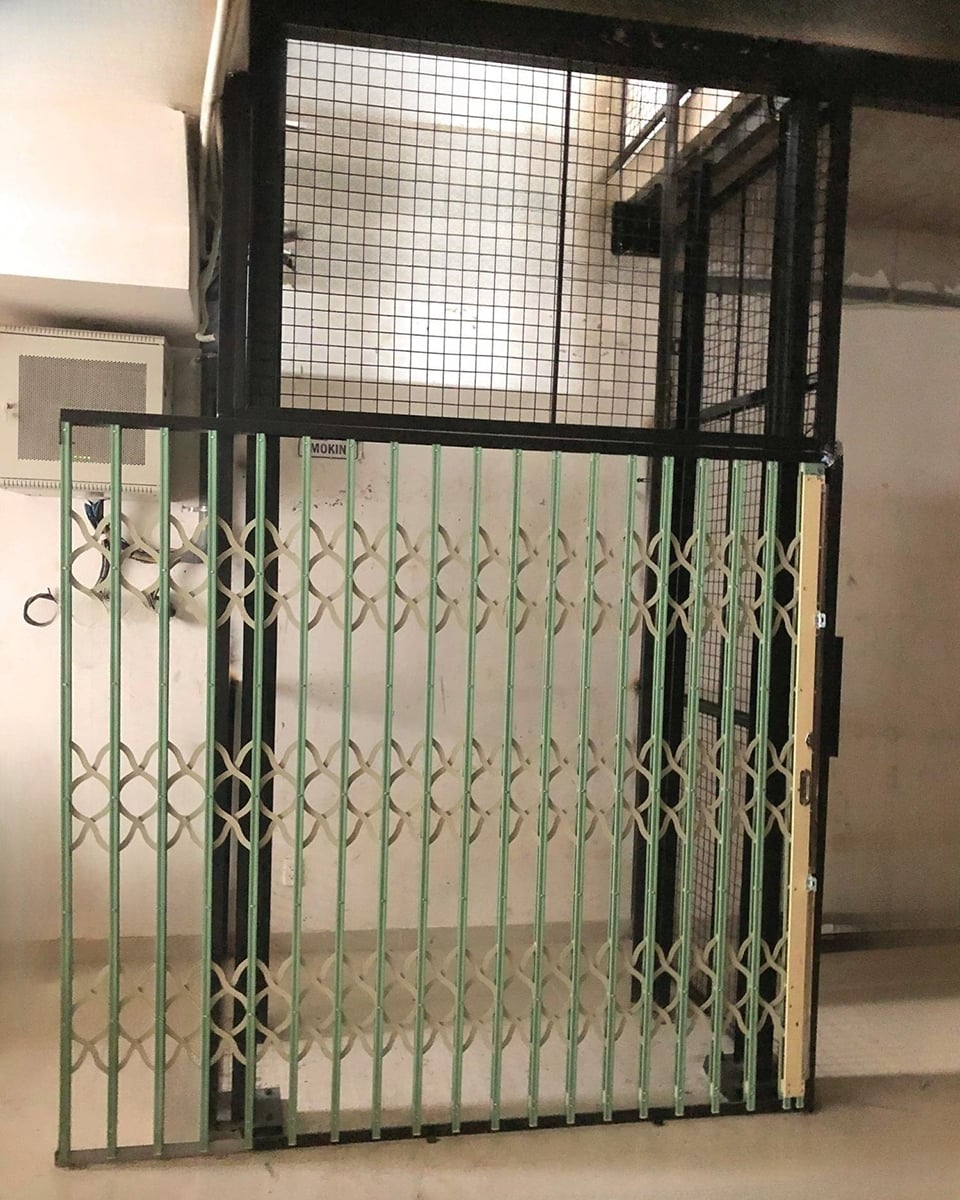

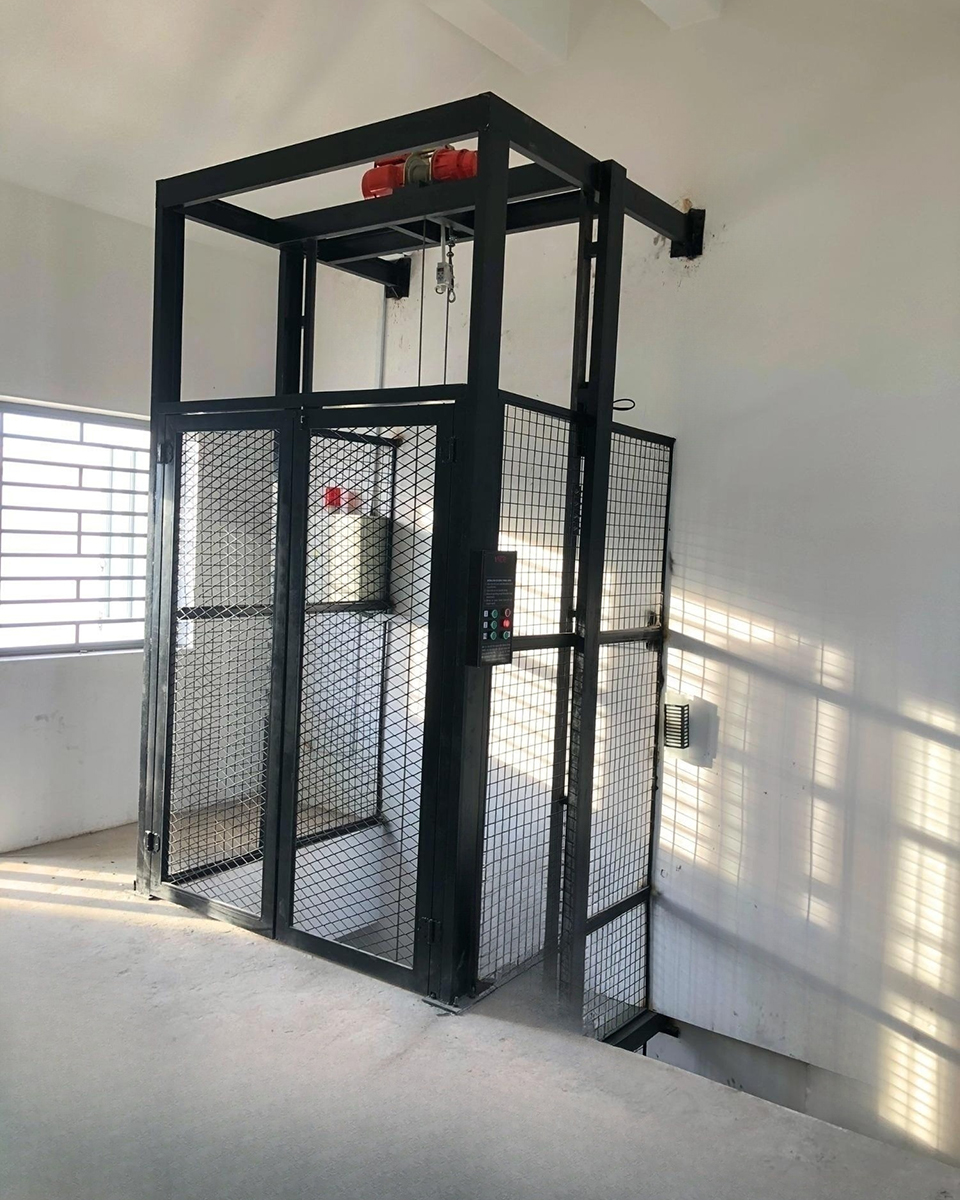

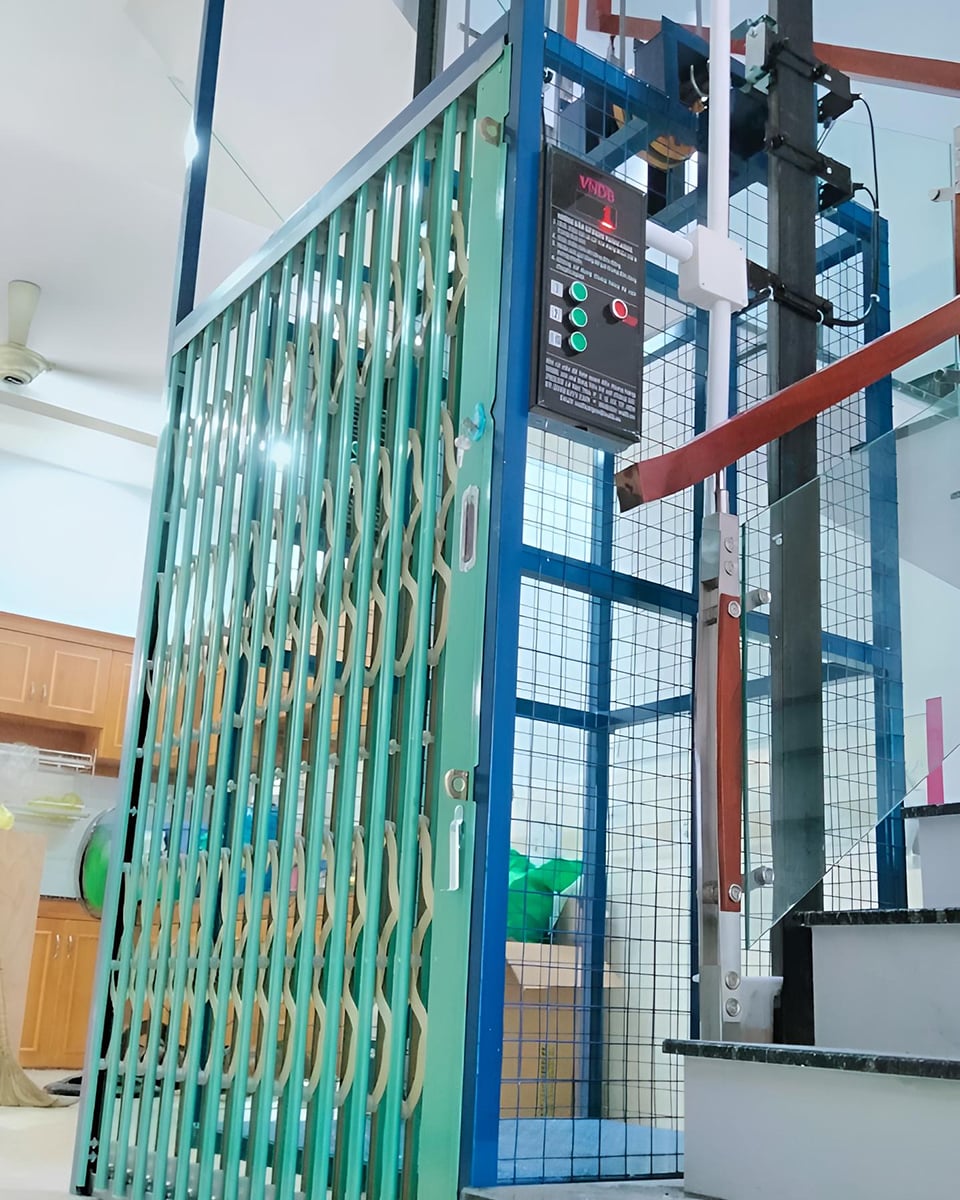

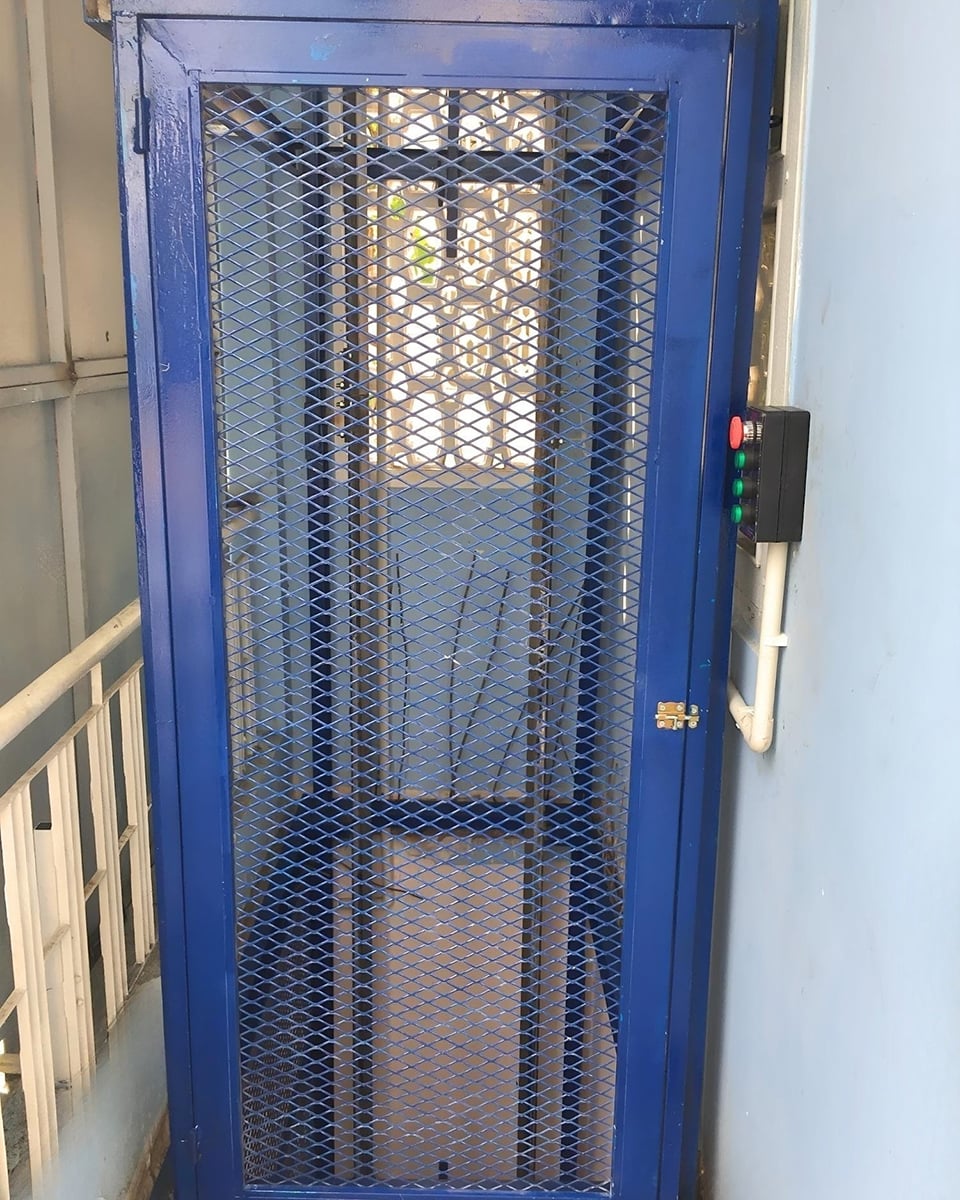

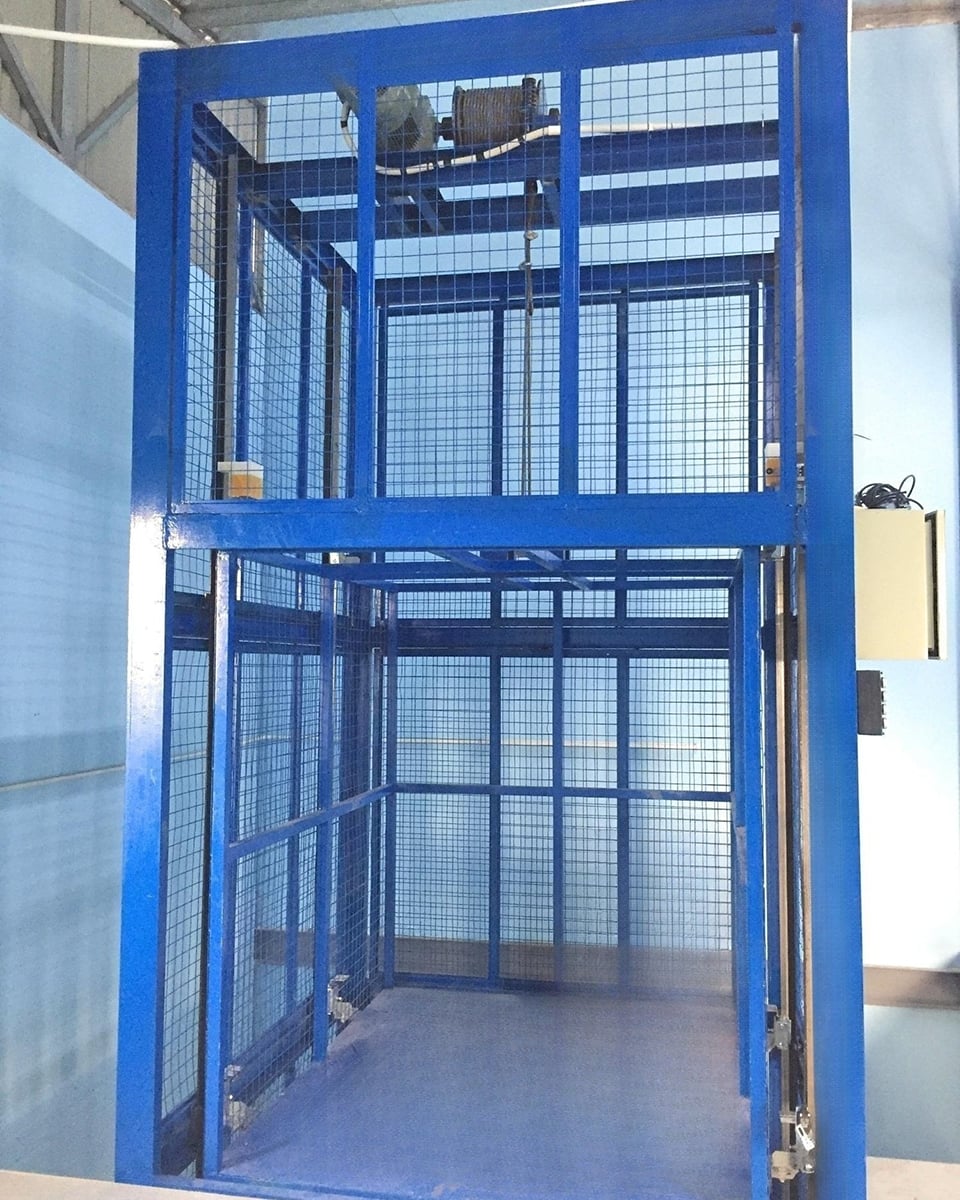

SOME GOODS LIFT MODELS COMPLETED BY VNDB

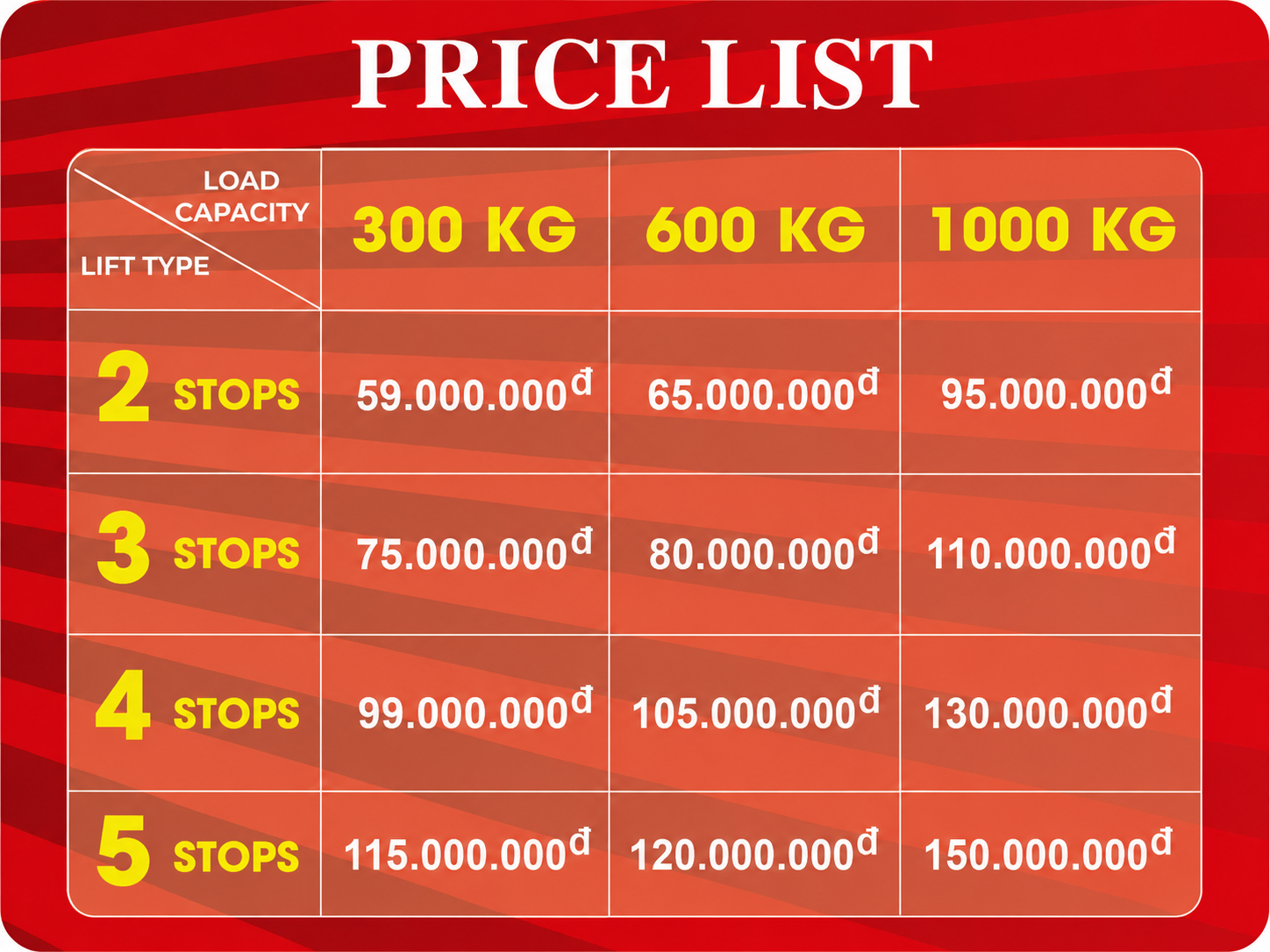

GOODS LIFT PRICE LIST BY NUMBER OF STOPS AND LOAD CAPACITY

GOODS LIFT WARRANTY POLICY

The warranty policy reflects the quality of the product and the service capability of the supplier. VNDB provides a standard warranty policy to ensure safe and reliable operation for customers.

WARRANTY PERIOD

• All lift products supplied by VNDB are installed and warranted for 1 year from the date of inspection or commissioning. The warranty period may be extended depending on customer requirements or the company’s policy. During the warranty period, VNDB’s technicians will inspect and maintain the lift to ensure that it continues to operate properly.
• During the warranty period, if the lift has any technical problem caused by manufacturer defects in equipment or components, VNDB will repair or replace the faulty parts within 48 hours in inner-city areas. If the problem is serious and requires more time for repair, VNDB will temporarily replace the equipment or components with available spare parts to ensure that the customer’s operation is not interrupted.

CONDITIONS FOR FREE WARRANTY

• The product is still within the warranty period according to the handover record.
• The lift is used correctly according to VNDB’s operating instructions.
• The issue is caused by a technical fault from the supplier.

CASES NOT COVERED BY FREE WARRANTY

• The product warranty period has expired according to the handover record.
• The customer does not comply with the terms of the contract.
• The lift is not used for the correct purpose or does not match the functions recommended by the supplier.
• The product is damaged due to force majeure events such as natural disasters, fire, abnormal power supply, or similar causes.
• The product is modified or repaired by a third party without written approval from VNDB.
• Consumable parts such as light bulbs, batteries, and similar components are damaged during use.
• Technical component faults are not caused by the manufacturer.

GOODS LIFT WARRANTY PROCESS

STEP 1: VNDB prepares a plan and schedules with the customer within 4 working hours after receiving the information.

STEP 2: VNDB staff contact the customer, collect feedback about product quality, and carry out warranty service within 48 hours.

STEP 3: VNDB checks the quality of each lift component.

STEP 4: VNDB cleans and checks the operating functions of the control cabinet and motor components.

STEP 5: VNDB cleans and checks the operating functions of the control panel, limit switches, horseshoe sensors, and related components.

STEP 6: VNDB performs a test run after warranty service, records the results, and discusses them with the customer.

STEP 7: After the warranty period ends, customers can switch to VNDB’s maintenance service.

QUALITY OF REPLACEMENT LIFT EQUIPMENT DURING WARRANTY AND MAINTENANCE

All equipment and components replaced during the warranty period are genuine and quality-assured by VNDB.

All parts are carefully inspected and selected according to the company’s technical standards.

STANDARD GOODS LIFT INSTALLATION PROCESS

VNDB has built a team of qualified, capable, and experienced engineers and technicians. The company regularly organizes specialized training programs and invites experts to provide technical instruction. This helps improve the professional skills of VNDB’s technical staff and allows the company to meet the increasing requirements of modern and large-scale projects.

All projects carried out by VNDB are completed with reliable operational quality, proper progress, and dedicated customer service.

The lift installation process is designed to control quality in detail throughout every stage of the work. VNDB supervises the entire lift system to ensure absolute quality before handover to the customer.

PROCESS FOR RECEIVING INFORMATION AND INSTALLING VNDB GOODS LIFTS

STEP 1: VNDB receives customer requests directly through the hotline 0987 012 020 or indirectly through VNDB’s communication channels.

STEP 2: VNDB provides free consultation and sends customers a detailed quotation together with the proposed product drawings based on their requirements.

STEP 3: The customer reviews and confirms the quotation.

STEP 4: Both parties sign the contract, confirm the installation drawing, and the customer makes the first payment.

STEP 5: VNDB transports materials and equipment to the project site and proceeds with installation.

STEP 6: VNDB conducts lift quality inspection to ensure that the lift is ready for safe and efficient operation.

STEP 7: Both parties complete contract settlement, sign the handover record, put the lift into operation, and complete the second payment.

STEP 8: VNDB provides warranty service according to the handover record.

STEP 9: After the warranty period ends, VNDB can sign a periodic maintenance contract with the customer upon request.
