Premium Food Lift Installation

If you are a restaurant owner, construction contractor, café owner, homeowner, or a business operator who needs to transport valuable goods such as jewelry, medicine, food, or other products between floors, this article is for you.

With the current trend of businesses expanding vertically due to high rental costs, investing in a high-quality food lift at a reasonable price has become an essential need for many restaurants, cafés, pharmacies, food service businesses, and commercial facilities. Understanding this demand, VNDB offers attractive food lift combo packages with outstanding quality and optimized costs.

Premium Food Lift Installation

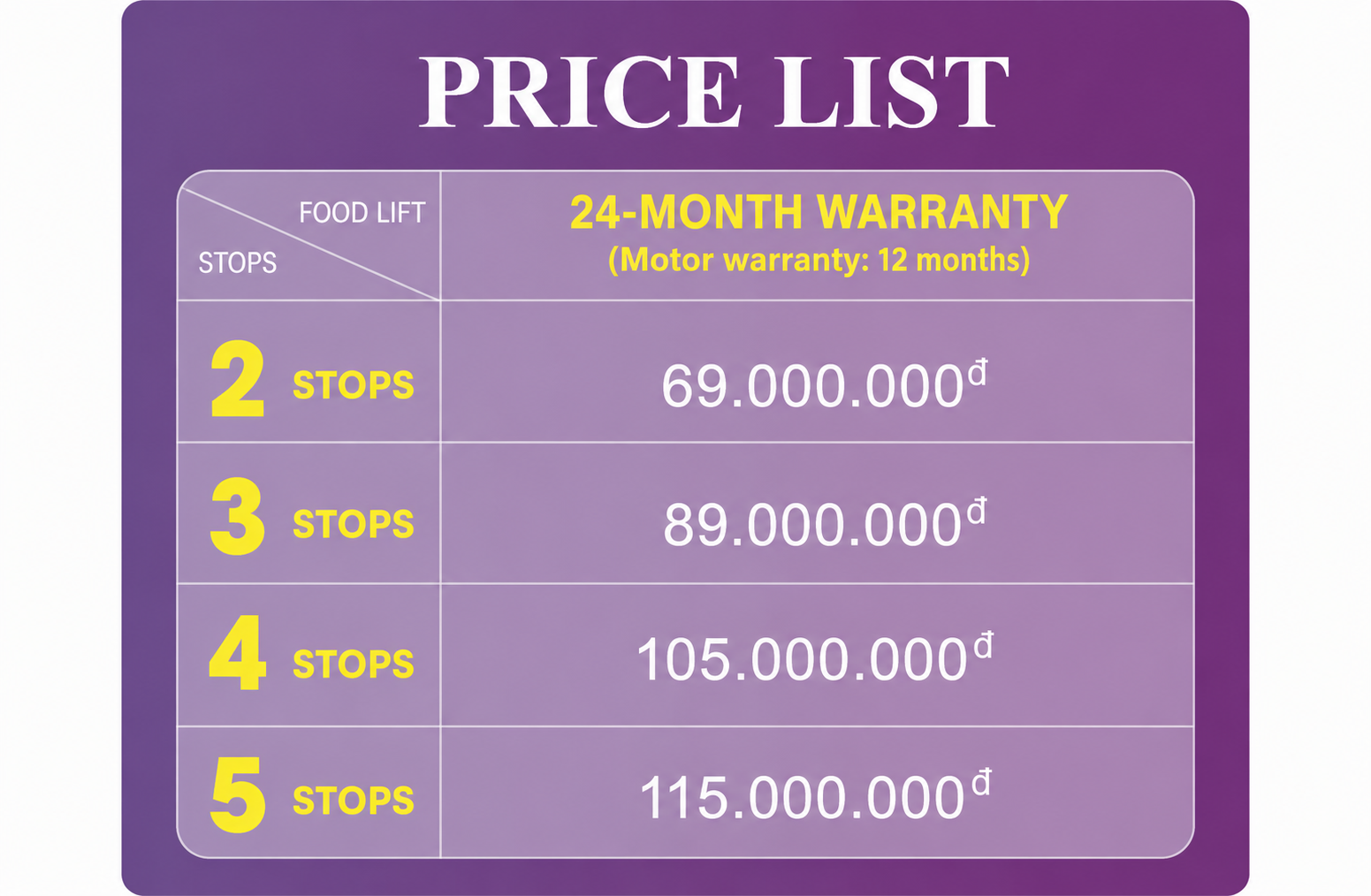

Customers can refer to VNDB’s attractive food lift price list based on different combo packages. These packages are designed to deliver excellent quality, practical performance, and cost-effective investment value.

The listed price is a complete installation package with no additional costs, applicable to projects located in the inner districts of Ho Chi Minh City.

Applicable Food Lift Specifications

The package applies to customers who select VNDB’s standard food lift models with the following cabin size:

Cabin size: Length x Width x Height: 600 x 600 x 800 mm

The cabin size can be adjusted within 100 mm without changing the price. If the adjustment exceeds 100 mm, the price may be changed depending on the actual requirements.

Notes

If the floor height is higher than 4 meters, the price will be calculated based on the next stop level.

The package price applies to projects in Ho Chi Minh City. For projects outside Ho Chi Minh City, customers will need to cover additional transportation and accommodation costs.

What Types of Projects Are Food Lifts Suitable For?

 Dairy and Food Processing Factories

Food lifts are suitable for dairy factories, food production facilities, and areas that require strict hygiene standards to prevent microbial growth and ensure cleanliness during transportation.

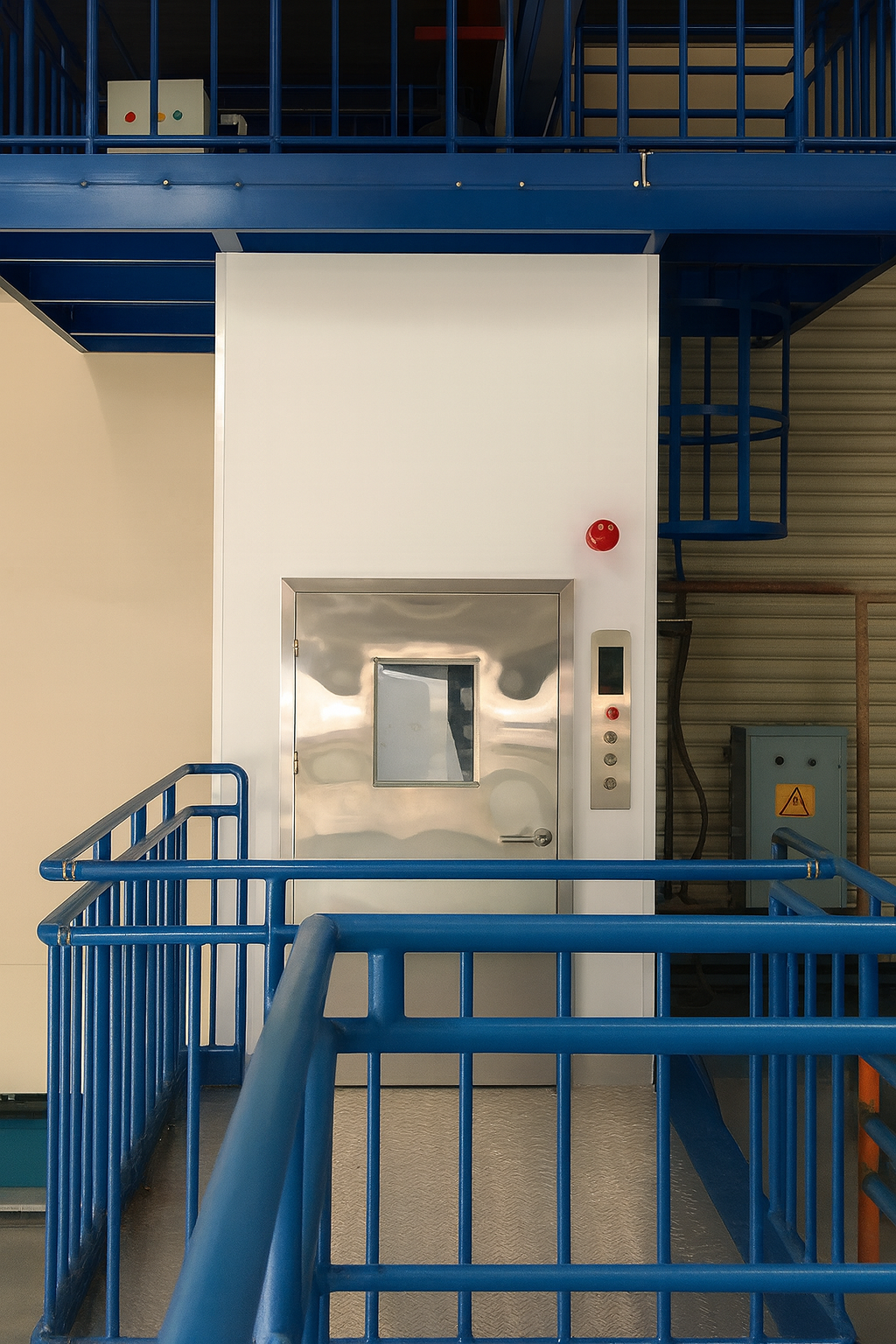

Food lift 200kg Dutch Lady Milk - KP Binh Duc 1, Binh Hoa Ward, Thuan An Town, Binh Duong

 Restaurants and Cafés

Restaurants and cafés often need to transport food, drinks, dishes, ingredients, and supplies between floors. A food lift helps reduce manual labor, save time, and improve service efficiency.

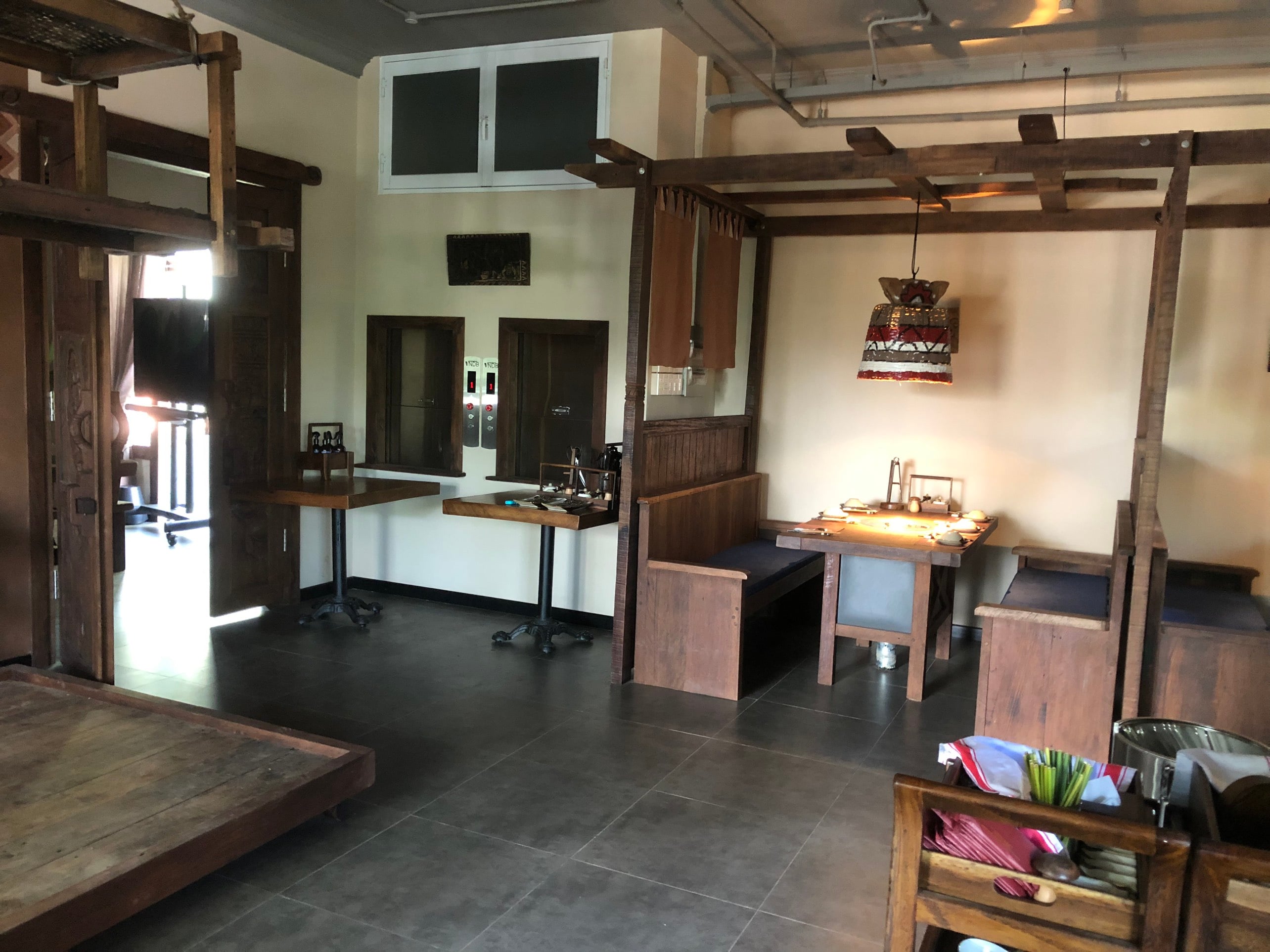

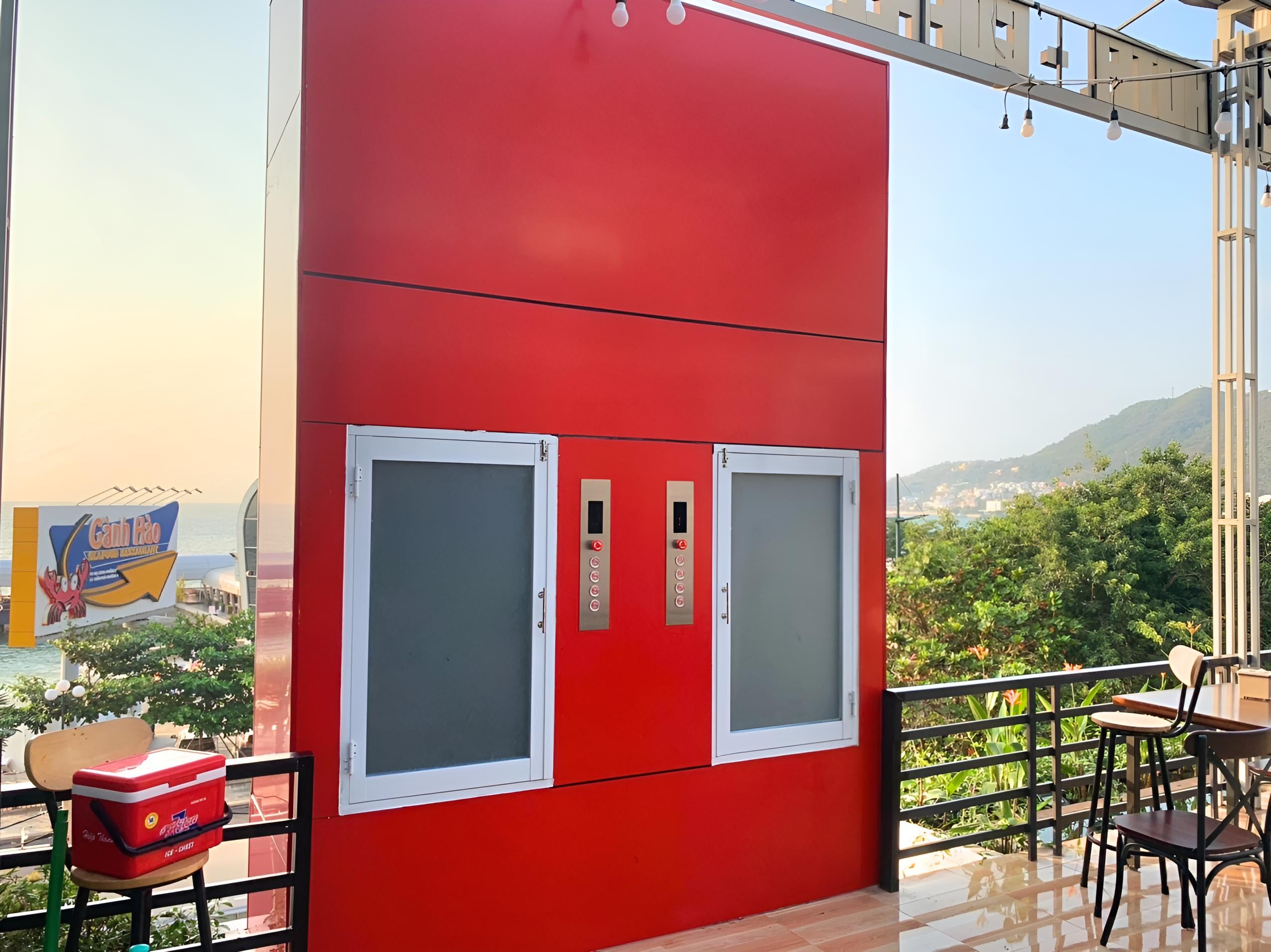

Food lift 100 kg, Nghi Hân Co., Ltd (General Contractor) - 122 Ha Long, Ward 2, Vung Tau City, Ba Ria – Vung Tau Province





food lift 50 kg, Truong Thinh Phat Construction Investment Consulting Joint Stock Company (General contractor) - 52 Xuan Thuy, Thao Dien Ward, District 2, Thu Duc City

 Pharmaceutical and Medical Storage Centers

Food lifts can be used to transport medicine, medical supplies, pharmaceutical products, and other valuable items that require safe and stable movement.



 Kindergartens and Schools

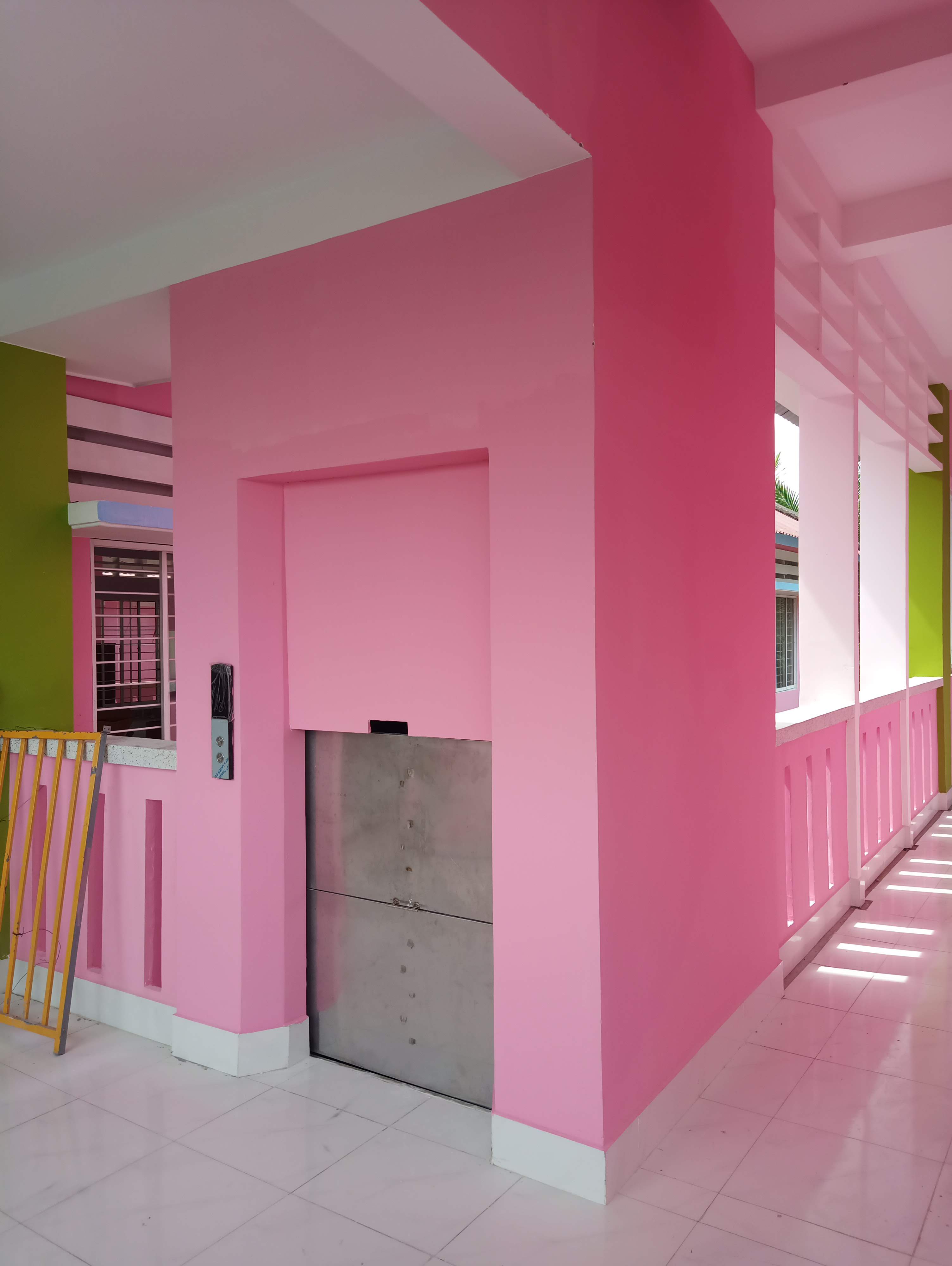

Food lifts are also suitable for kindergartens and schools where meals, food trays, kitchen supplies, and daily service items need to be transported between floors safely and conveniently.

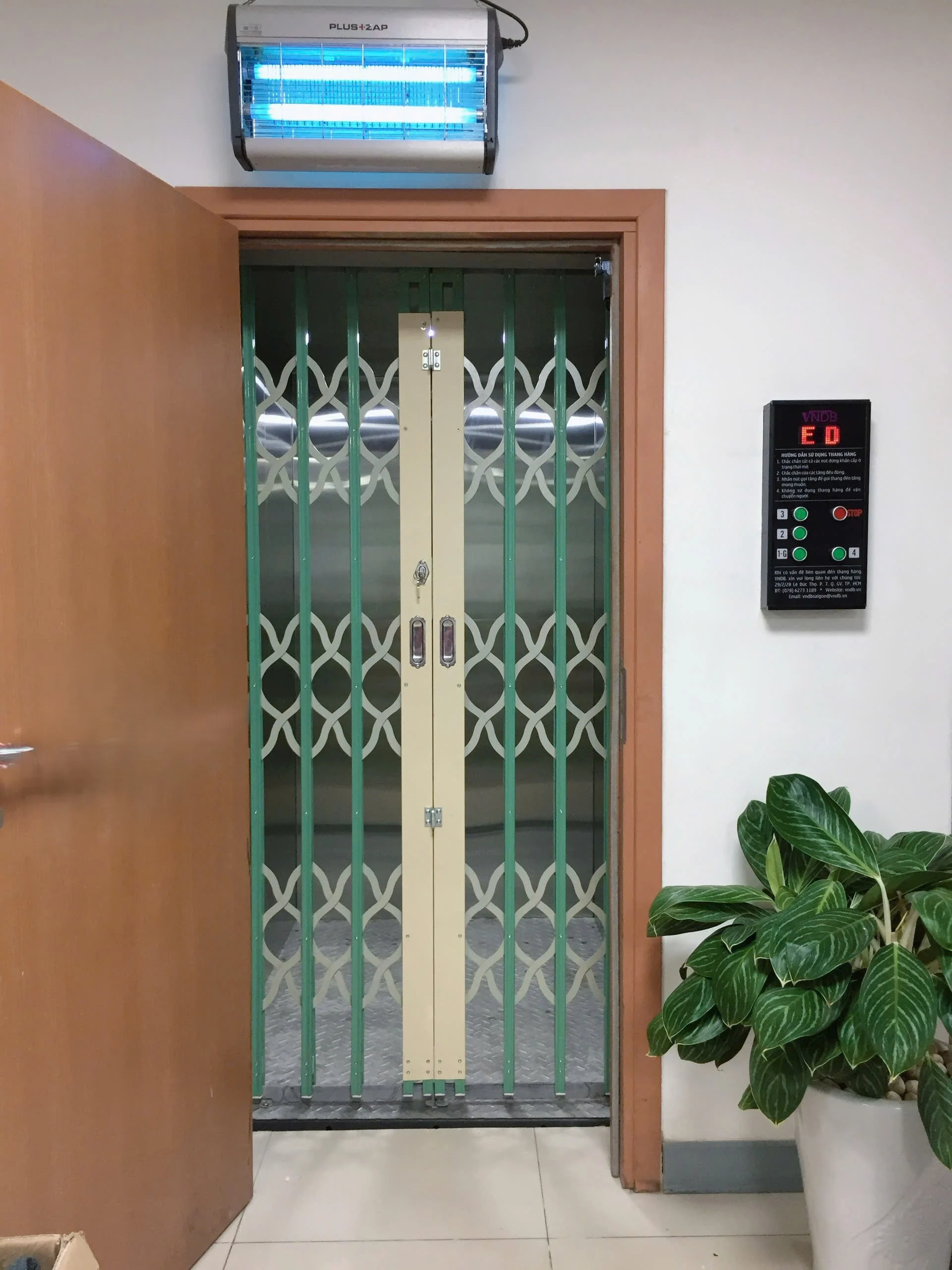

Food lift 300 kg, Vietnam Vaccine Joint Stock Company (VNVC) - No. 290-292 Hung Vuong Street, Dao Thanh Commune, My Tho City, Tien Giang

A. Ordering Process

Step 1: Select the Number of Stops

Customers choose the number of stops according to the actual structure and usage requirements of the building.

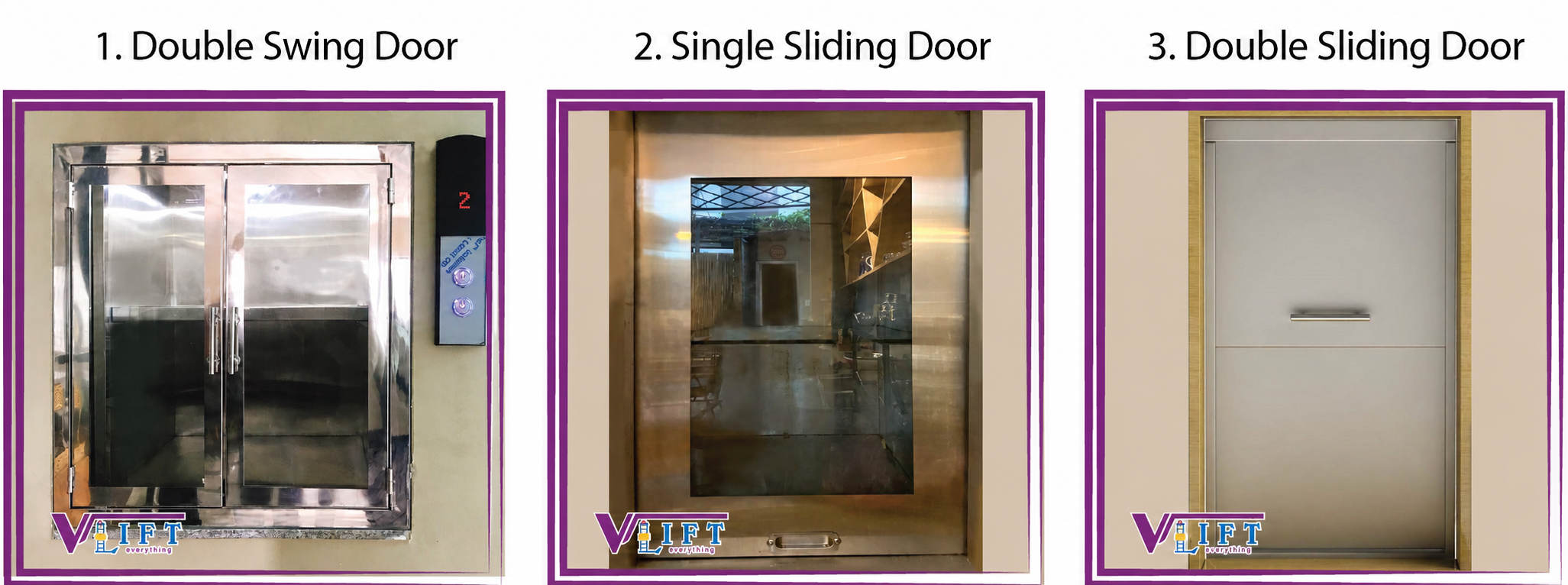

Step 2: Select the Landing Door Option

Customers select the landing door design based on the available VNDB door collection and the installation conditions of the project.

Step 3: Send Order Information

Customers can send their order information through the following channels:

Zalo: Send information to 0987 012 020 with the following details: Name – Phone Number – Number of Stops – Door Model.

Email: Send the same information to info@vndb.vn.

Facebook: Send the information through VNDB’s official Facebook page.

Hotline: Contact 0987 012 020 directly for consultation and support.

Step 4: Confirmation and Installation

VNDB will confirm the information with the customer and proceed according to the food lift installation process described below.

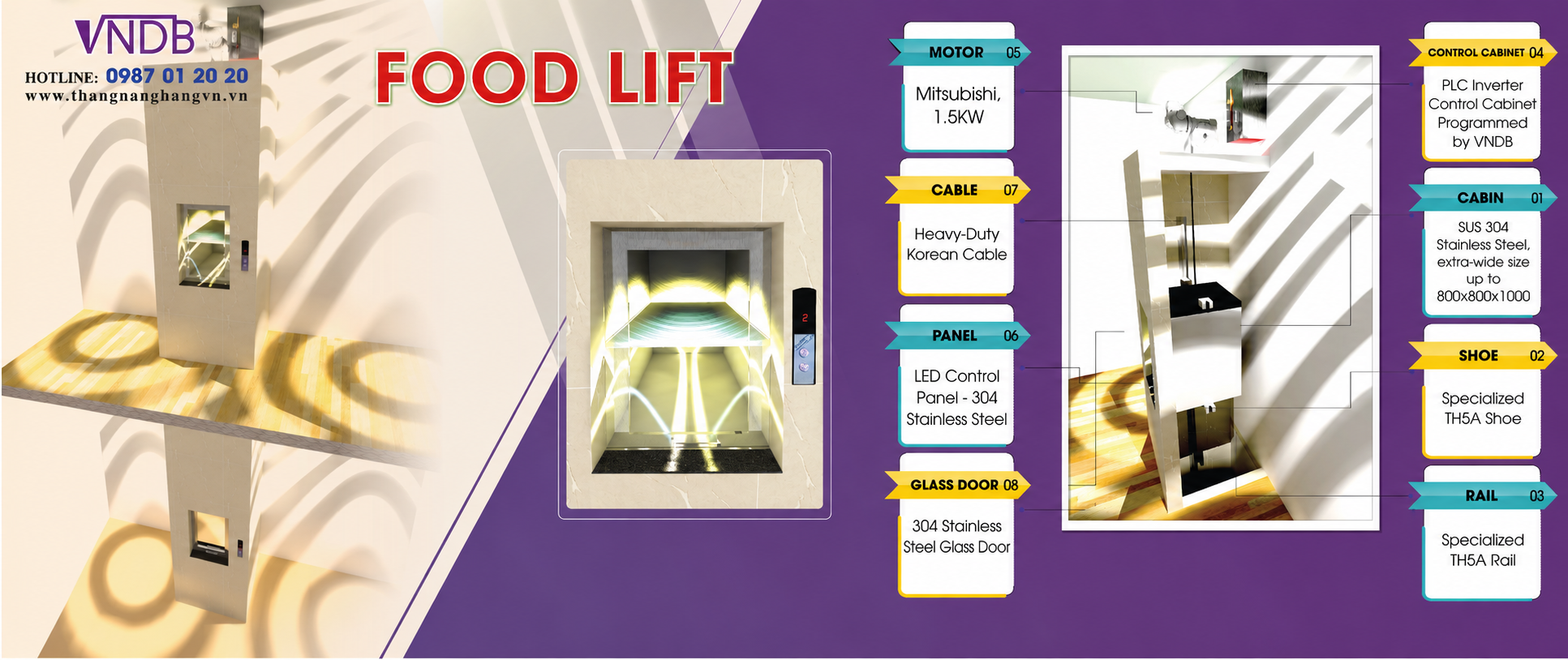

B. VNDB Combo Food Lift Information



Description of the Goods Lift System

General Information

• Product: Food lift with a lifting capacity of 50 kg
• Origin: Manufactured and assembled by VNDB Construction Investment Joint Stock Company with a high localization rate
• Warranty: 24-month comprehensive warranty

Applications of the Food Lift

• A food lift is an effective and convenient lifting solution for individuals, businesses, households, restaurants, cafés, food service providers, and multi-storey commercial facilities. It is specially designed for transporting food and related goods safely and efficiently between floors.
• The installation location can be flexible depending on the actual site conditions. The lift can be installed indoors or outdoors. Customers may also take advantage of skylights, vertical shafts, or open spaces to install the food lift, helping save working space and construction costs.

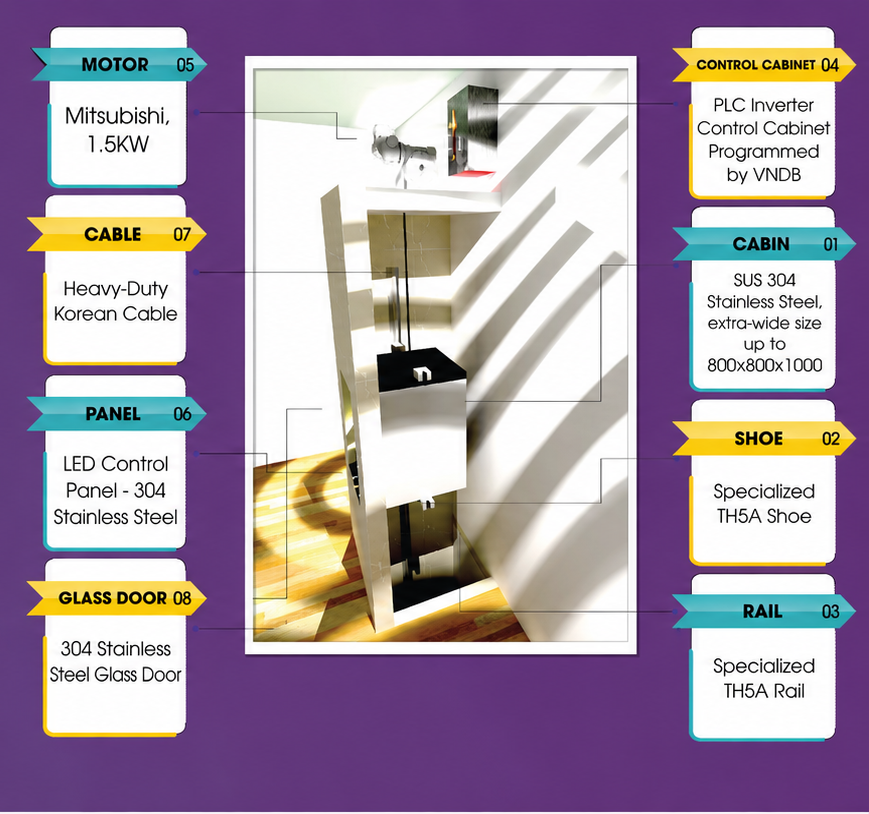

Description of VNDB Food Lifts

• VNDB food lifts are designed by a team of experienced and dedicated engineers. The products feature a clean appearance, practical structure, easy installation, and careful inspection before being put into operation to ensure safety and reliability.
• The motor system is newly imported and comes with CO and CQ certificates, ensuring reliable quality and long-term durability.
• The lift frame is fabricated by VNDB using high-strength steel. Specialized guide rails are used for food lifts to improve operational stability and reduce oxidation during use.

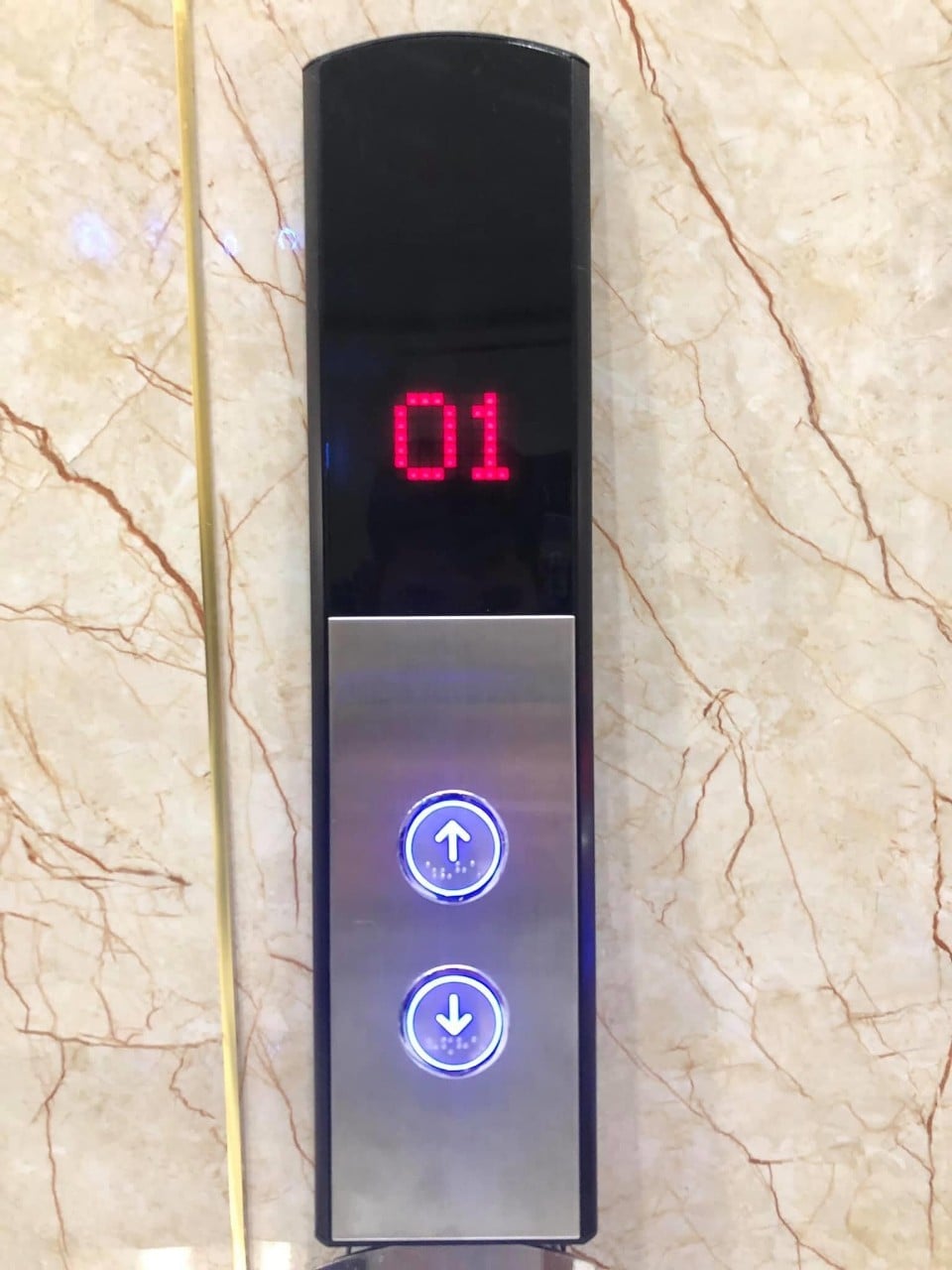

• The stainless steel control panel is equipped with an LED display, allowing users to identify the current floor position of the cabin during operation.



Basic Functions

Energy-Saving Function

• The control system uses a PLC chip to coordinate motor operation, helping the lift move smoothly, stably, and reliably. This system can reduce electricity consumption by up to 30% compared with older control cabinets.
• Devices such as LED lights and control buttons can be temporarily switched off when not in use to save energy.

Locking Function During Power Failure

• In the event of a sudden power outage, the central control cabinet automatically returns the command and activates the locking function to prevent the cabin from falling.

Safety Functions

• Door lock safety: To ensure safe operation, all lift doors must be closed before the lift can run. If any landing door is not properly closed, the control cabinet will prevent the lift from operating and display an error on the LED panel.
• Travel limit safety: If the lift encounters a problem related to exceeding the permitted travel limit, the control system will immediately stop the lift to ensure safety.

Advanced Functions – Available Upon Request

The following advanced functions can be added according to customer requirements and are not included in the standard package.

Overload Protection

When the lifting load exceeds the permitted rated capacity, the system will display an overload warning and will not execute the movement command.

Deceleration Before Stopping

When the lift approaches the stopping point, the system reduces the speed to minimize vibration and impact. This helps keep goods stable and intact, especially when transporting food.

Basic Technical Specifications

No.	Item	Technical Specification
01	Actual lifting capacity	Rated capacity: 50 kg
02	Rated speed	Less than 20 meters per minute
03	Drive system	Non-counterweight system
04	Main motor	Mitsubishi – Japan – Like New – 24-month warranty
05	Main controller	PLC – Inverter – Relay
06	Guide rail	Specialized TH5A / T50 rail
07	Specialized lifting cable	Diameter 8 mm
08	Frame and wall material	Finished by the customer
09	Cabin material	SUS 201 stainless steel frame, SUS 304 stainless steel cabin enclosure
10	Landing door material	SUS 201 stainless steel with tempered glass / manual SUS 201 stainless steel door with support struts for two-section doors
11	Landing door type	Manual opening
12	Structural frame	Included
13	Display interface	LED Matrix
14	Floor call button	Specialized elevator push button
15	Floor arrival bell	Included
16	Elevator PIT	Not required
17	Machine room	Available with or without machine room
18	Power supply	1-phase 220VAC or 3-phase 380VAC. Note: A 3-phase motor provides better stability than a 1-phase motor.

C. Food Lift Warranty Policy

The warranty policy reflects both product quality and the supplier’s service capability. VNDB provides a standard warranty policy to ensure safe, reliable, and high-quality operation for customers.

Customers can refer to VNDB’s detailed warranty policy for more information.

Food Lift Maintenance Policy

During the warranty period, VNDB provides quarterly maintenance service, equivalent to once every three months. This helps ensure that the customer’s food lift operates continuously, safely, and efficiently.

Customers can refer to VNDB’s maintenance policy for more detailed information.

D. Standard Goods Lift Installation Process

VNDB has built a professional team of qualified and experienced engineers and technicians. The company regularly organizes specialized training programs and invites experts to provide technical instruction, helping improve the skills and knowledge of its technical staff to meet the increasingly high requirements of modern and large-scale projects.

All projects carried out by VNDB are completed with reliable operational quality, proper installation progress, and dedicated customer service. The installation process is designed to control quality in detail throughout every stage, allowing VNDB to supervise the entire lift system and ensure absolute quality before handover to the customer.

E. Process for Receiving Information and Installing VNDB Combo Food Lifts

Step 1: Receiving Customer Requests

VNDB receives customer requests directly through the hotline 0987 012 020 or indirectly through VNDB’s communication channels.

Step 2: Free Consultation and Quotation

VNDB provides free consultation and sends customers a detailed quotation together with the proposed product drawings based on the customer’s requirements.

Step 3: Quotation Confirmation

The customer reviews and confirms the quotation.

Step 4: Contract Signing and First Payment

Both parties sign the contract. The customer makes the first payment and confirms the installation drawing.

Step 5: Material Delivery and Installation

VNDB delivers materials and equipment to the project site. The customer makes the second payment, and VNDB proceeds with installation.

Step 6: Quality Inspection

The lift will undergo quality inspection, if required, to ensure that it is ready for safe and effective operation.

Step 7: Handover and Final Payment

Both parties complete contract settlement, sign the handover record, put the lift into operation, and complete the third payment.

Step 8: Warranty Service

VNDB provides warranty service according to the handover record.

Step 9: Periodic Maintenance Contract

After the warranty period ends, VNDB can sign a periodic maintenance contract with the customer upon request.

F. Quality Standards for Goods Lifts

Depending on the type of lift and its intended use, each lift system must meet specific technical and safety standards. Goods lifts are designed to transport goods in warehouses, workshops, restaurants, schools, factories, and other facilities, so safety is always a key requirement.

After installation and before being put into operation, the lift may be inspected by the competent authority based on applicable quality and safety standards. Only after passing the inspection can the lift be approved for use. All inspection steps must be carried out in accordance with strict procedures and legal regulations.

Applicable standards include:

TCVN 4244:1986 – Safety regulations for lifting equipment and elevators.

TCVN 7628-3:2007 – Elevator installation – Part 3: Service lifts, Type
